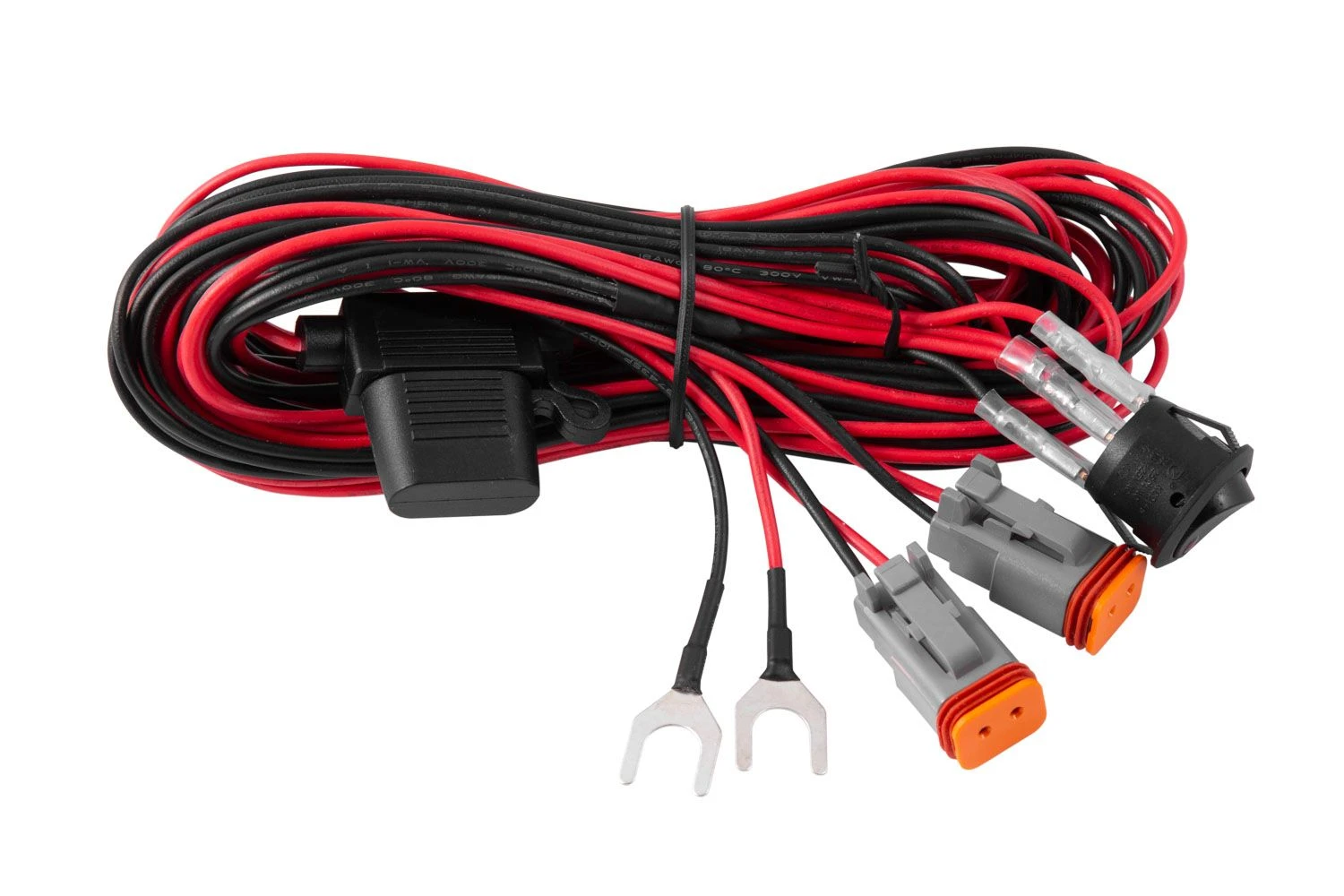

Diode Dynamics Light Duty Dual Output 2-Pin Offroad Wiring Harness

Original price was: $41.00.Current price is: $28.70.

Fitment
This harness is designed to power Diode Dynamics Stage Series light bars and LED pods without backlight functionality.

Installation Guide

What’s Included
In the Box:
One (1) wiring harness
One (1) toggle switch
Quantity: One (1)
Warranty: 3 year

Secure Shopping with Safe Payments

Peace of Mind with Every Purchase

Nature-friendly materials, 100%.

No Compromise on Quality

Features
Powers Diode Dynamics Stage Series light bars and LED pods.
Connects directly to the battery to power your light.
High capacity 18AWG wiring.

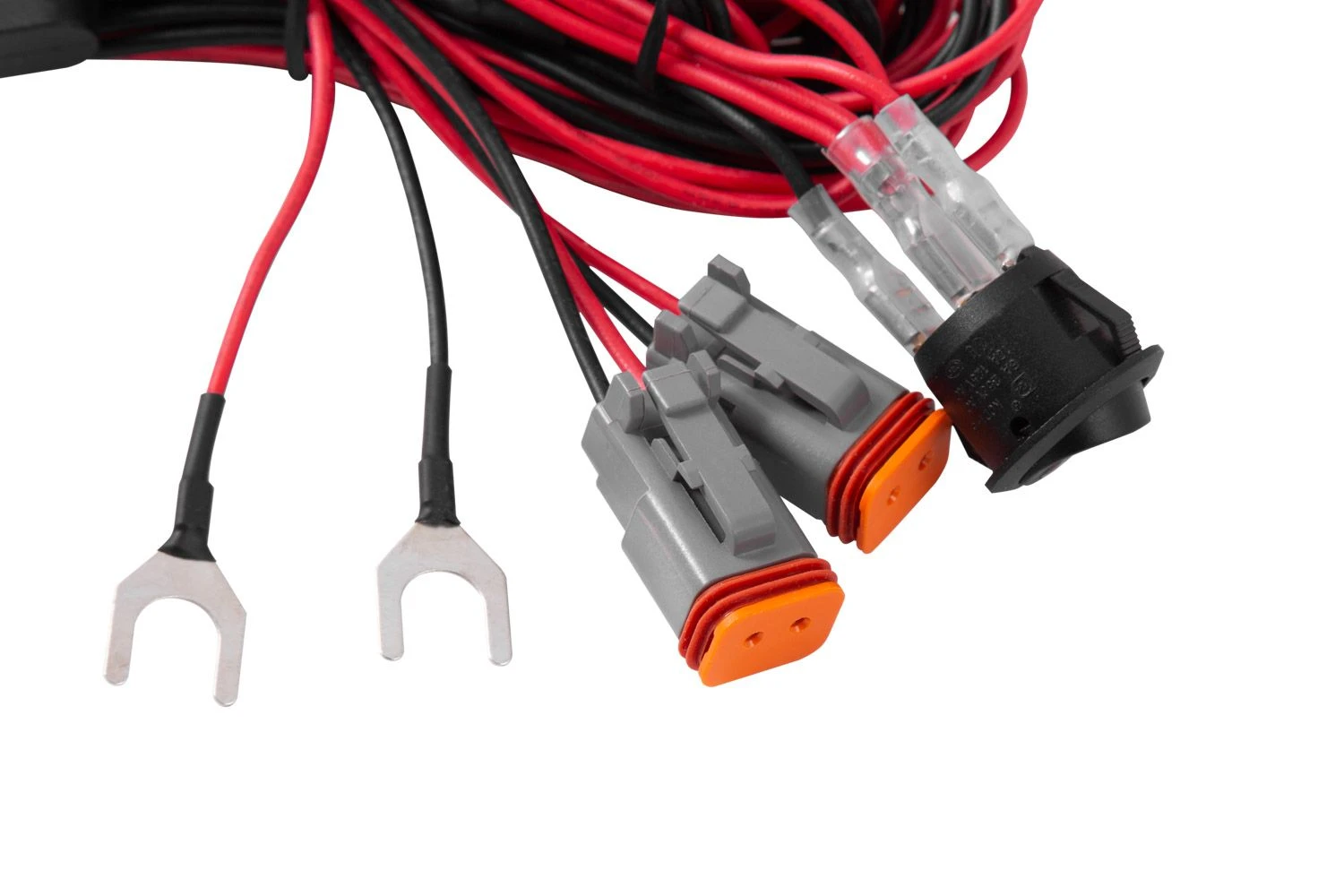

Dual Deutsch DT output connectors.

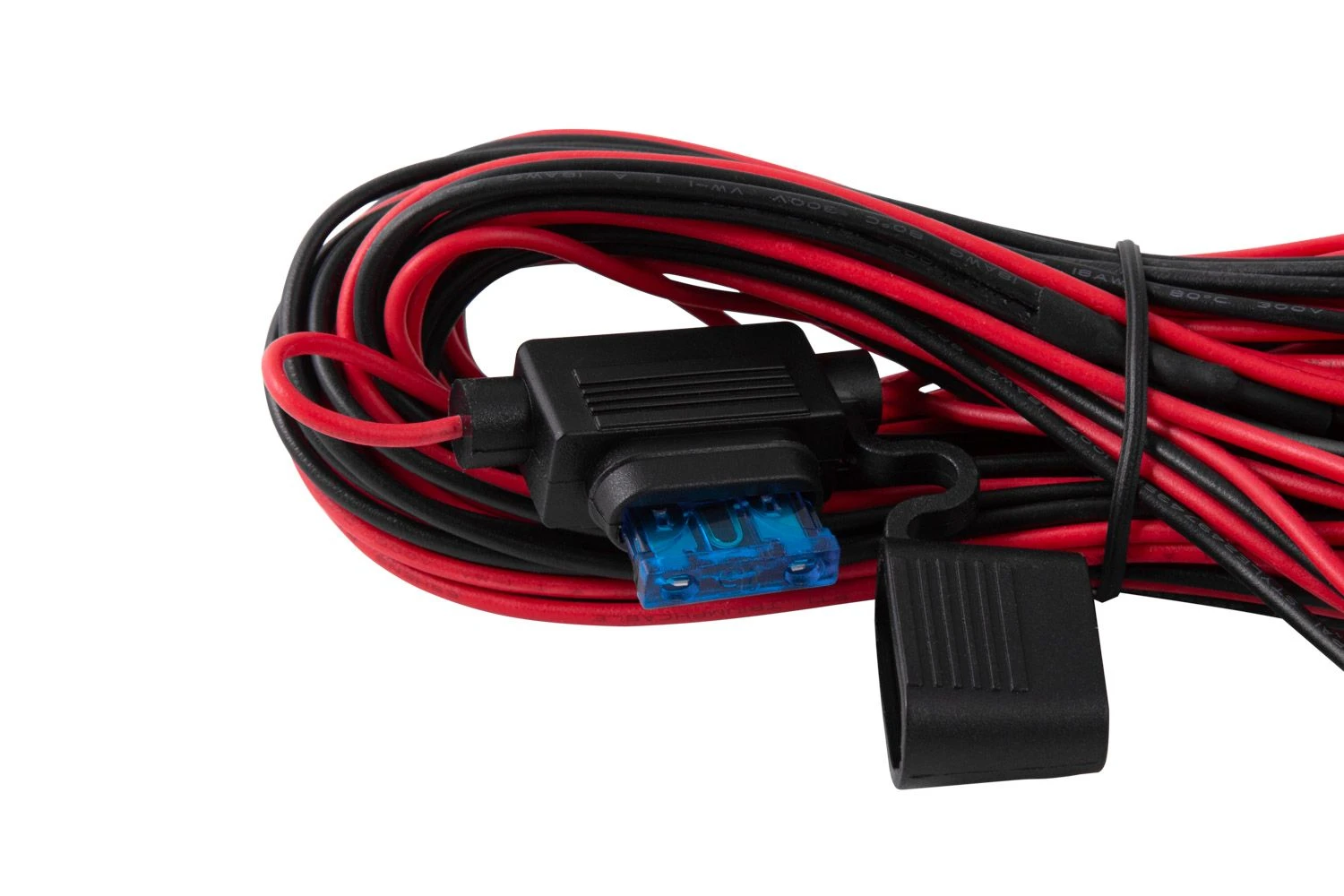

15A, waterproof fuse to safeguard the electrical systems in your light.

Overview
Stage Series. This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle’s battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 18AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 6A of auxiliary lamps. Please refer to the current draw data below.

SS3 Sport: 1.1A
SS3 Pro: 2.7A
SS3 Max: 3A
SS6 Light Bar: 1.9A
SS12 Light Bar: 4.2A
SS18 Light Bar: 5.7A

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you’d like to discuss your lighting project!

Specifications

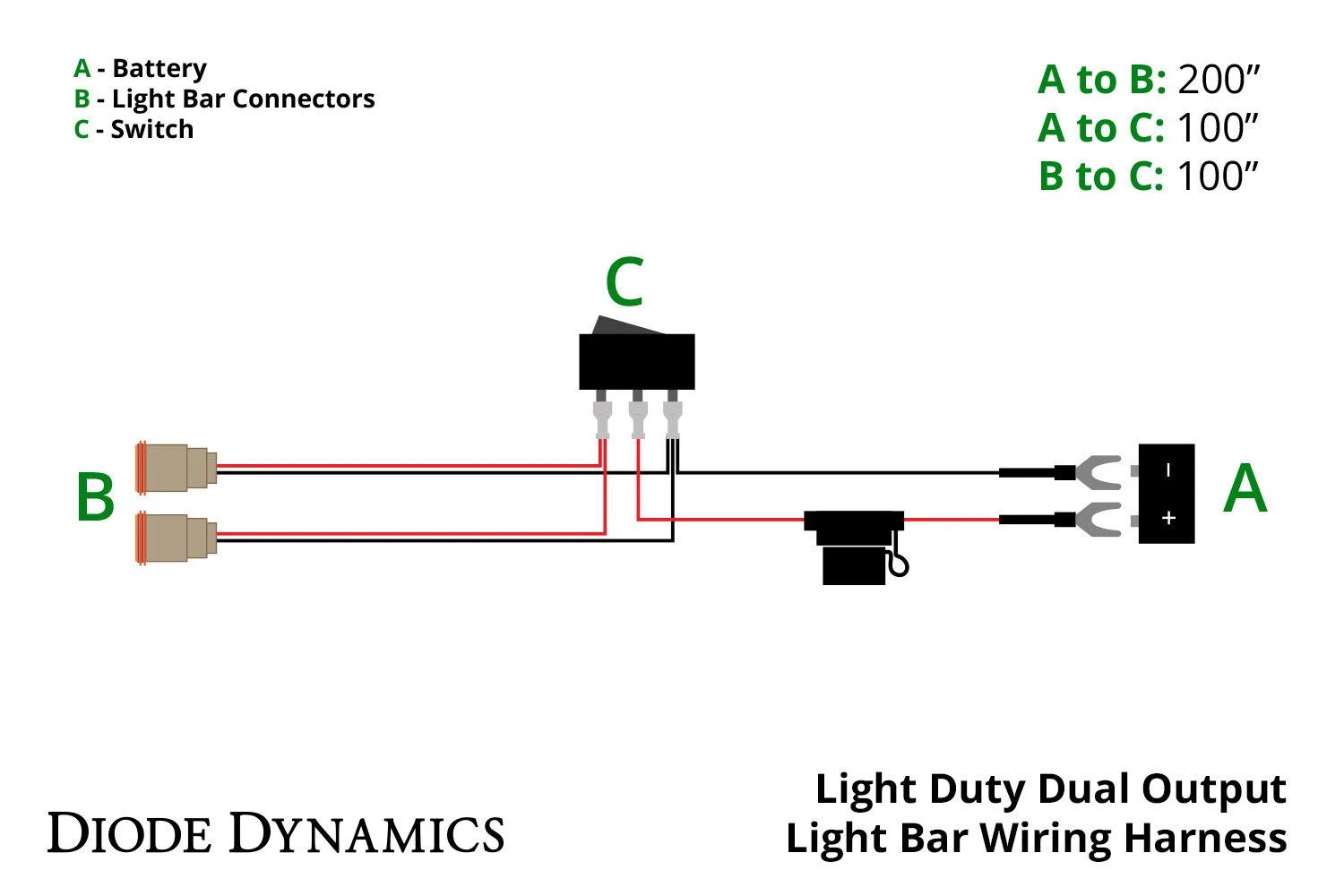

Length (in): 200
Wire Size: 18AWG
Shipped Weight (lb): 1.16
