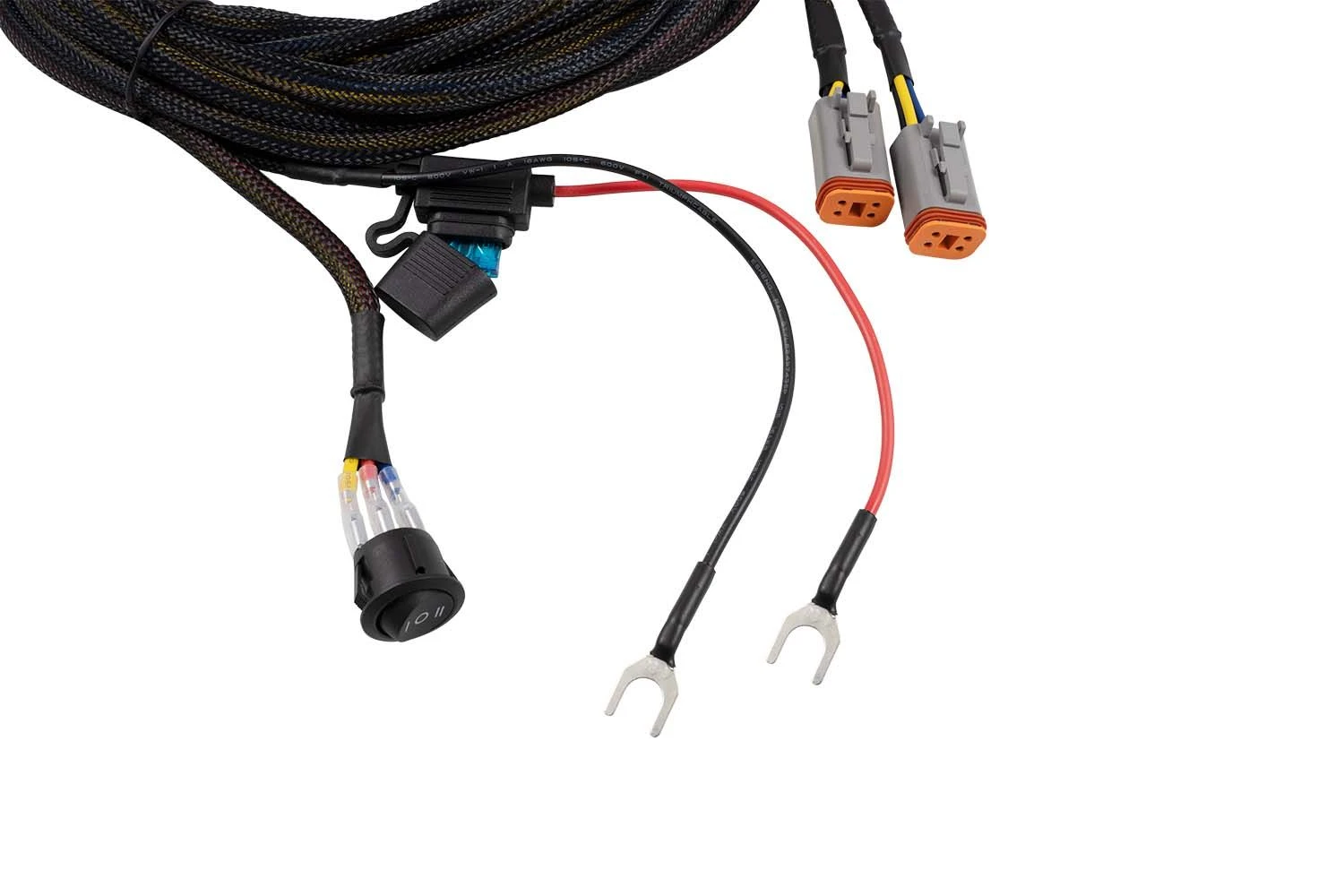

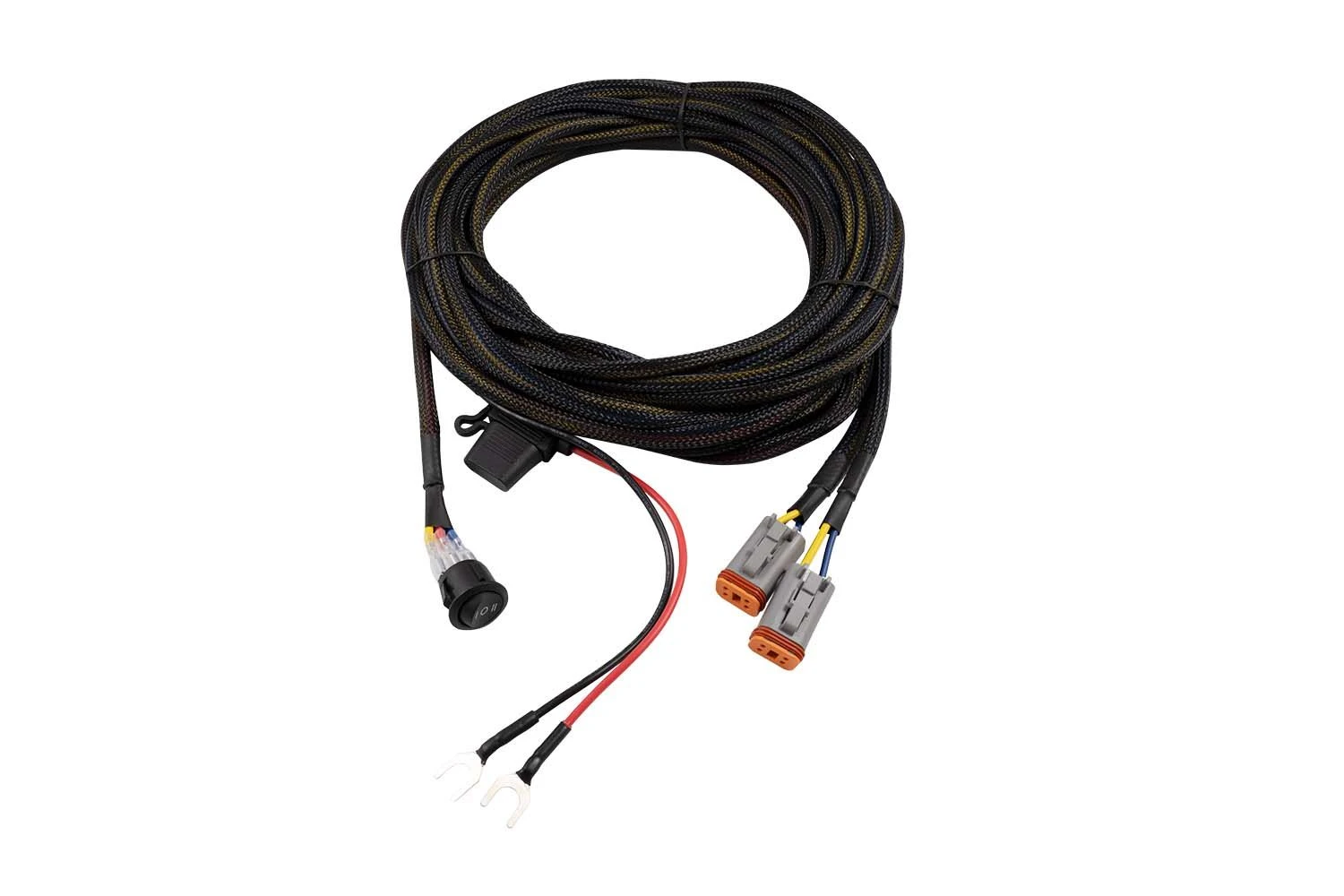

Diode Dynamics Light Duty Dual Output 4-Pin Wiring Harness

Original price was: $54.00.Current price is: $37.80.

Features
Powers Diode Dynamics LED pods with backlight functionality.
Connects directly to the battery to power your LED pods.
High capacity 16AWG wiring.
Dual Deutsch DT output connectors.
15A waterproof fuse to safeguard the electrical systems in your pods.

Fitment
NOTE: This harness is intended to be used with our Stage Series pods with backlight functionality.

Installation Guide

What’s Included:
In the Box:
One (1) wiring harness
One (1) toggle switch
Quantity: One (1)
Warranty: 3 years

Secure Shopping with Safe Payments

Peace of Mind with Every Purchase

Nature-friendly materials, 100%.

No Compromise on Quality

Overview

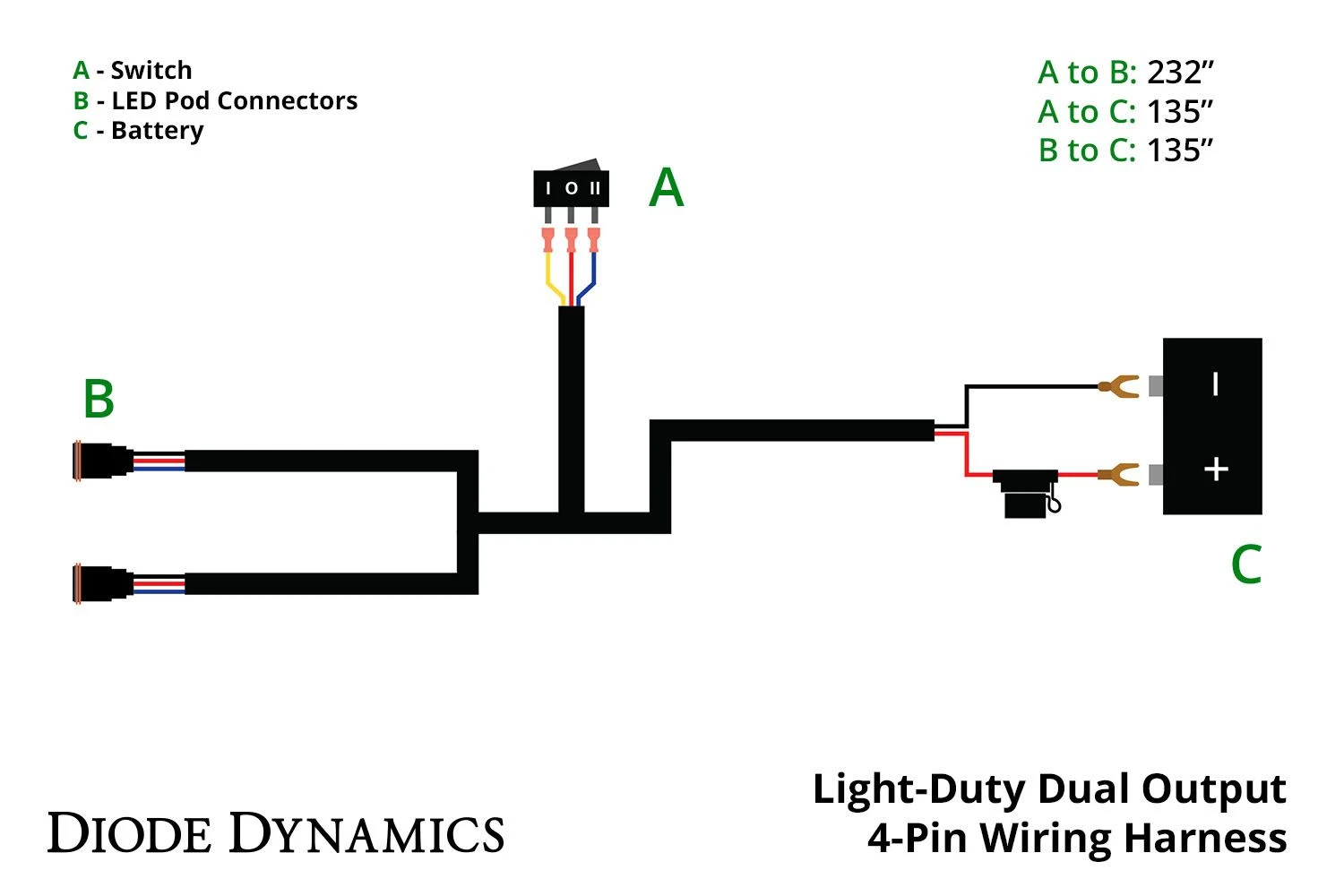

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle’s battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 16AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 6A of auxiliary lamps. Please refer to the current draw data below.

C1 Sport: 1.2A
C1 Pro: 1.7A
SSC2 Sport: 0.6A
SSC2 Pro: 1.75A
SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
SS3 Pro Main Beam: 2.7A, Backlight: 0.03A
SS3 Max Main Beam: 3A, Backlight: 0.03A

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you’d like to discuss your lighting project!

SPECIFICATIONS
Operating Voltage: 9-16V
Wire Size: 16AWG
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): Deutsch DT Input
Shipped Weight (lb): 3.31
