Diode Dynamics: Stage Series RGBW LED Rock Light (one)

Overview

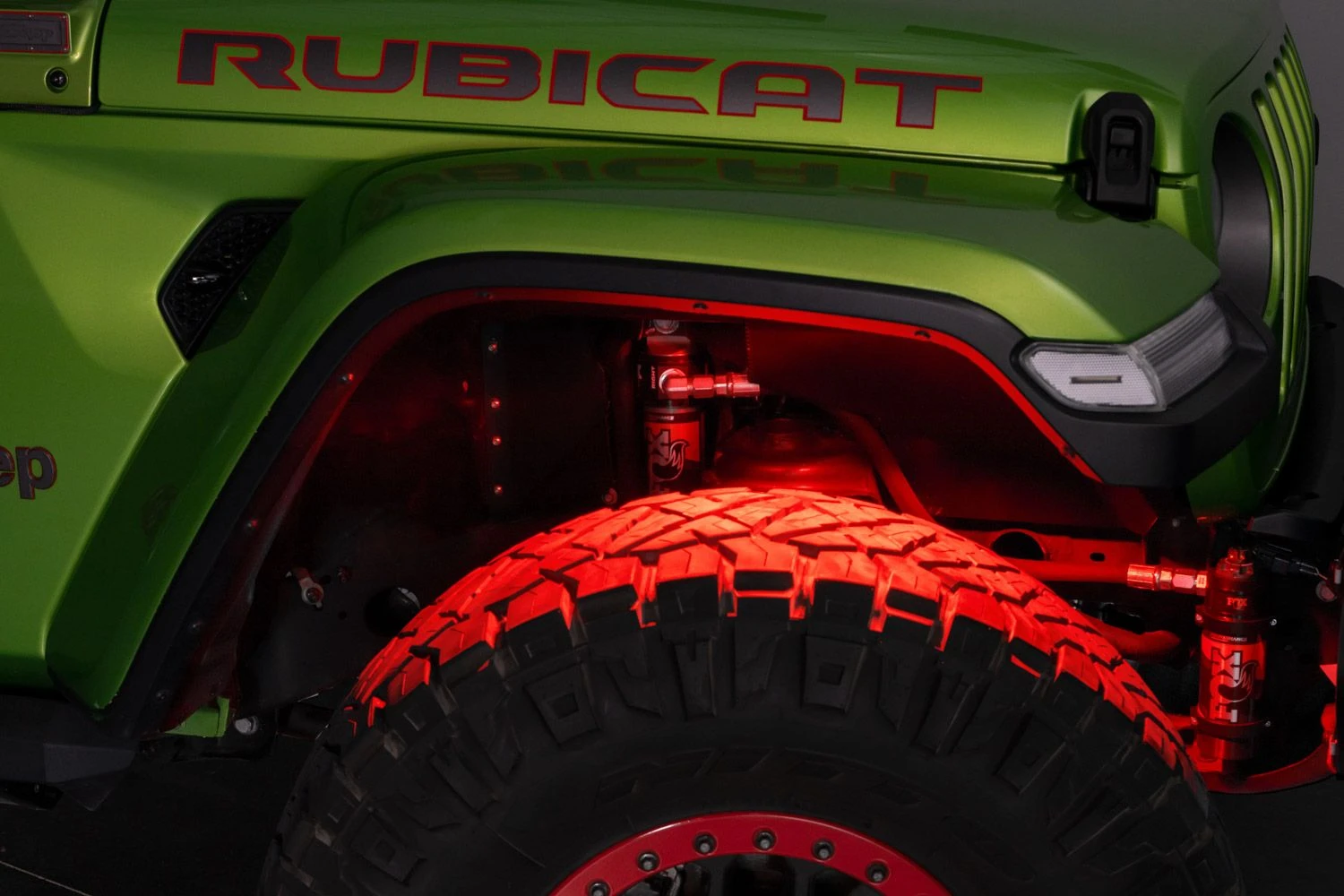

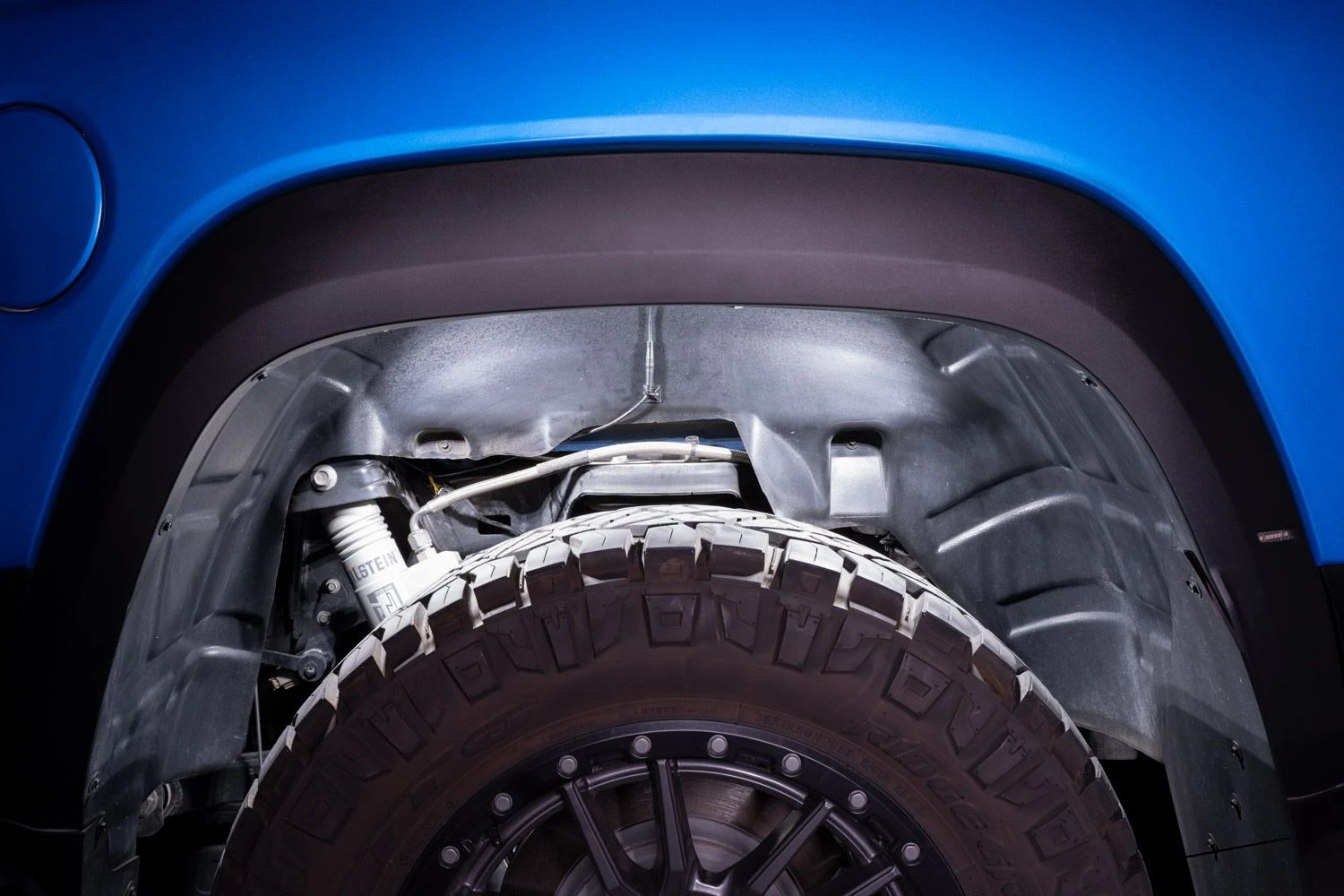

Introducing the Stage Series Rock Light from Diode Dynamics! With high-power RGBW LED emitters, these USA-assembled units are a major step up from any other multicolor rock light on the market today. Rock lights are a perfect solution to add light underneath your vehicle on the trail. Or, with their compact size and numerous mounting solutions, you can add these anywhere you need some extra light – your cargo area, under the hood, on a roof rack, the side of a trailer, and more. The applications are endless!

Multicolor plus White. With four high-intensity RGBW LED emitters, the Diode Dynamics Rock Light provides plenty of output in any color you can think of, paired with our RGBW remote or RGBW Bluetooth controller and app. The diffused optical feature of the lens provides excellent integration of colors. And unlike other multicolor lights, the extra white chip means that these will light up in a bright, pure white color when you want to maximize output. Want to show off? Use your controller to start a pattern, strobe, fade, or control the brightness. The best of both worlds! Our RGBW rock lights pack a punch, but if you are looking for the most output possible, check out our single-color rock lights!

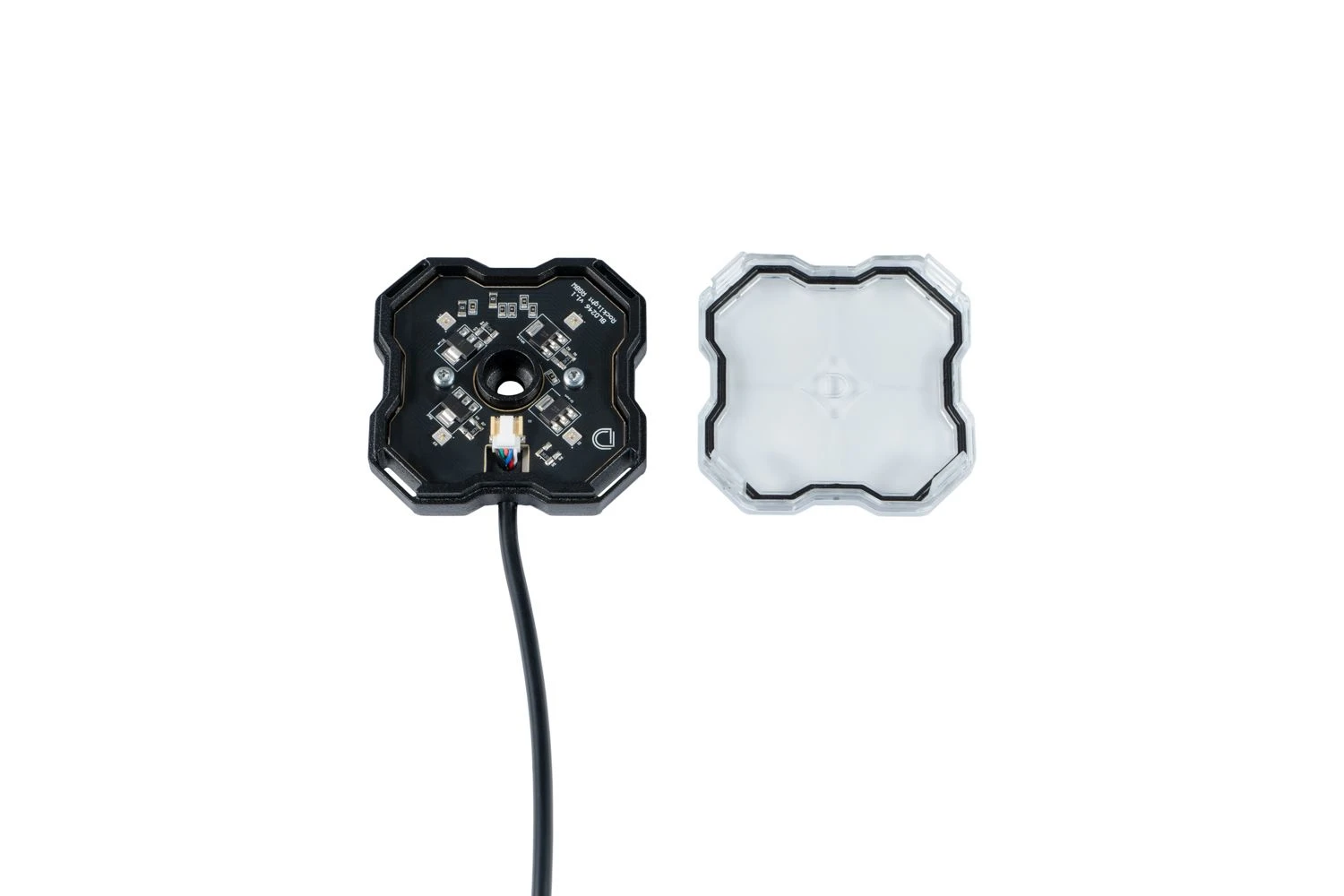

Optically-Engineered Lenses. Most rock lights are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provide excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable, and can be swapped out easily as needed.

Mount it Anywhere! Stage Series LED Rock Lights were designed to be mounted virtually anywhere on your vehicle. All rock lights come standard with a center bolt mounting point, which is neatly hidden underneath the lens. The aluminum heatsink also features hidden mounting tabs for quick zip-tie installation, if preferred.

If that’s not enough, we also offer a variety of mounting solutions, including a roll bar mount, magnetic mount, flush mount, and surface mount to cover any other potential application. Each of these accessory mounts is designed to mate up perfectly with the base rock light unit, for a professional and clean appearance when installed.

Simple Connections. For maximum convenience, these lights include a waterproof M8 barrel-style connector with a 10-inch lead. This provides a secure, waterproof connection and is compatible with our plug-and-play harnesses. At only 8mm in diameter, it’s still easy to route the wires to where you need them. Up to 16 Rock Lights can be wired together using the included harness.

Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you’re driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you’d like to discuss your lighting project!

Specifications
NOTE: The output data below is for the White Diffused option. Additional data coming soon!
Measured Lumens: 75 Intensity (cd): 30
Color Temp (CCT): 6800K
Beam Angle: Round, 60°
Power (watts): 4.596
Operating Voltage: 9-16V
Current (amps @ 13.2V): 0.36
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP68 Waterproof
