Diode Dynamics Switchback Solid-State Relay Harness (Pair)

Original price was: $68.00.Current price is: $47.60.

Features
Provides direct battery power for switchback LED products
Activate LEDs from three independent factory signals, with no errors
Designed to power Diode Dynamics switchback and single-color drivers
Up to 8 amp draw at 12 volts, or 96 watts DC
Fully waterproof and shockproof, validated for -40 to 185F operation

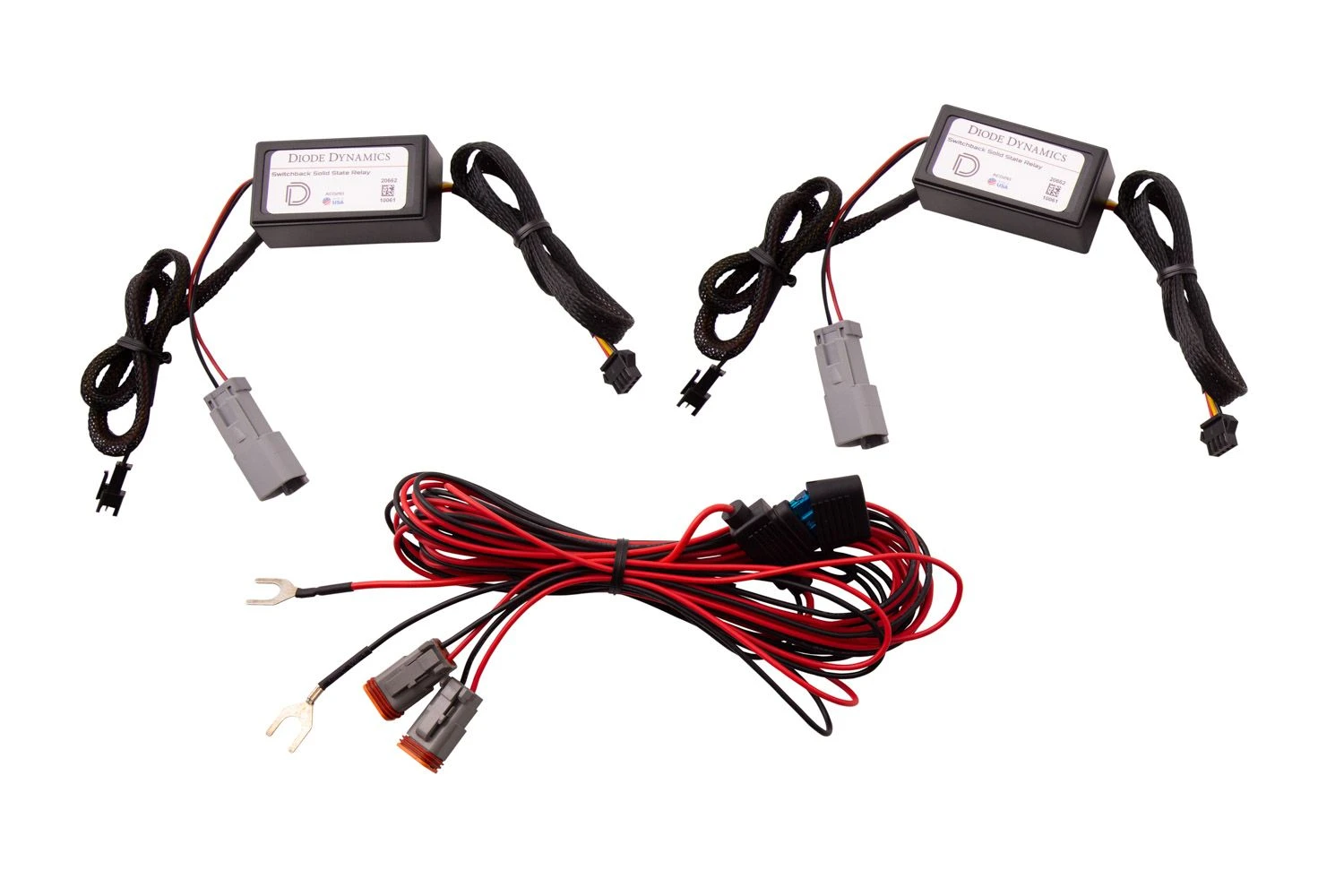

What’s Included:
Two (2) Switchback Solid-State Relay modules
One (1) Fused battery input wire
Installation guide
Warranty: 3 years

Secure Shopping with Safe Payments

Peace of Mind with Every Purchase

Nature-friendly materials, 100%.

No Compromise on Quality

https://youtu.be/VqdgbvLk_Rwp://

Like a relay, but better. The Solid-State Relay Harness from Diode Dynamics allows devices to draw power directly from the battery, while still using your factory signals for activation. It works like a traditional relay harness, but better!

No errors. An increasing number of vehicles have computer-controlled factory signals. They flicker or shut off when too much power is used, making it impossible to use factory signals to power aftermarket lighting. You may have wired in traditional relay harnesses in the past to solve this, but those can have trouble if the signal flickers, and have to be custom-wired for each installation.

Designed for function. At Diode Dynamics, we are committed to delivering fully-designed lighting solutions that work correctly on the vehicle, not just on the bench. To accomplish this, we designed the Switchback Solid-State Relay module with three independent low-impedance signal pickups, compatible with factory signals, PWM filtering (50% duty cycle minimum), robust solid-state switches, and a fused battery harness. With its solid-state design, it will be more reliable over time than traditional relays, at a similar cost.

Use it (almost) anywhere. The Switchback Solid-State Relay Harness has been designed for use with switchback and single-color drivers. You can use it to run from your factory signals and deliver up to 8 amps or 96 watts directly from your battery. Unlike a standard relay harness, this module has three independent input signals, to activate power any time either signal is turned on (for example, turn signal, high power, and low power).

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you’d like to discuss your lighting project!

Specifications
Operating Voltage: 5-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)

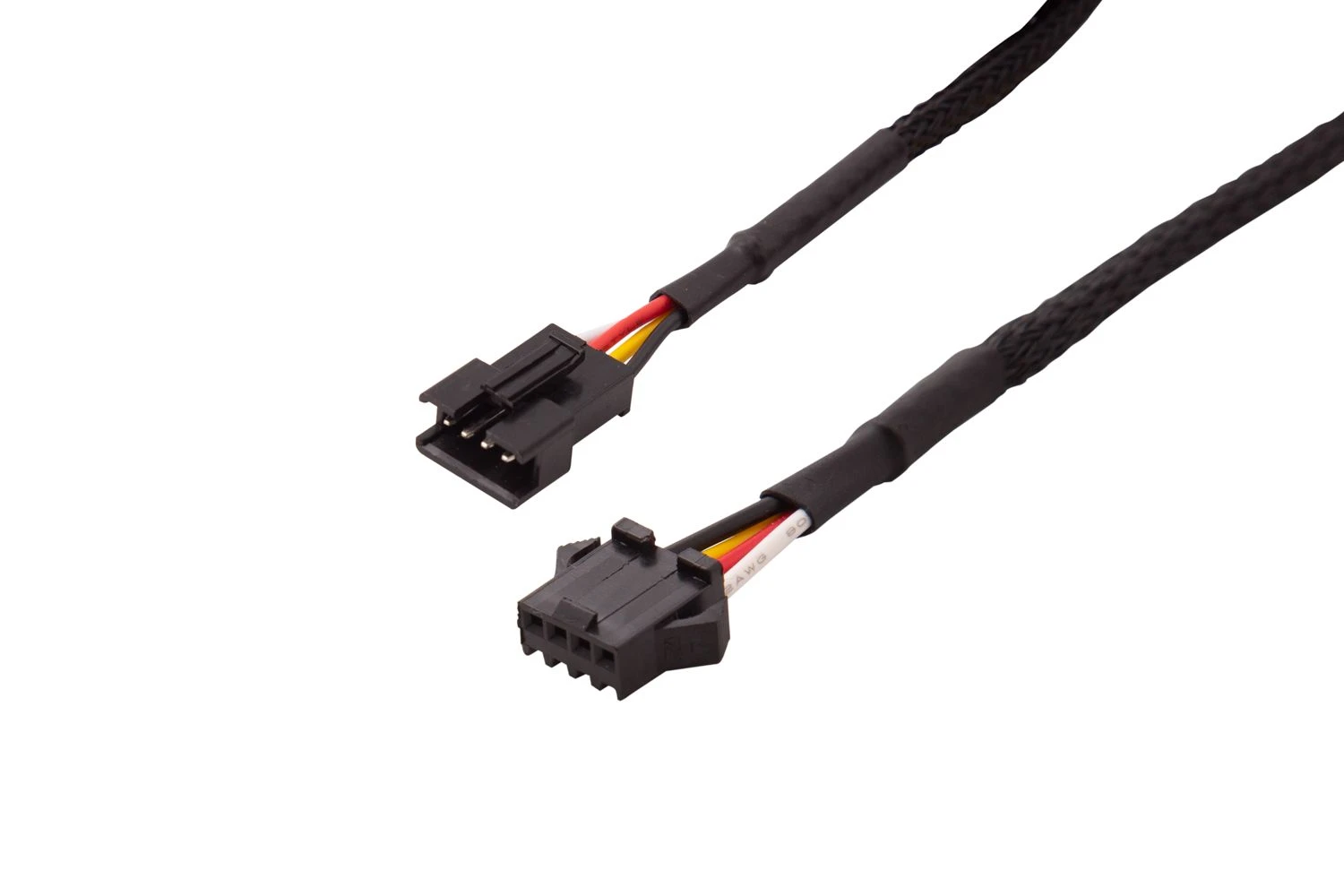

Connector(s): Deutsch DT Input, T-Tap Inputs
Intrusion Ratings: IP68
Waterproof Weight (lb): 0.3000
