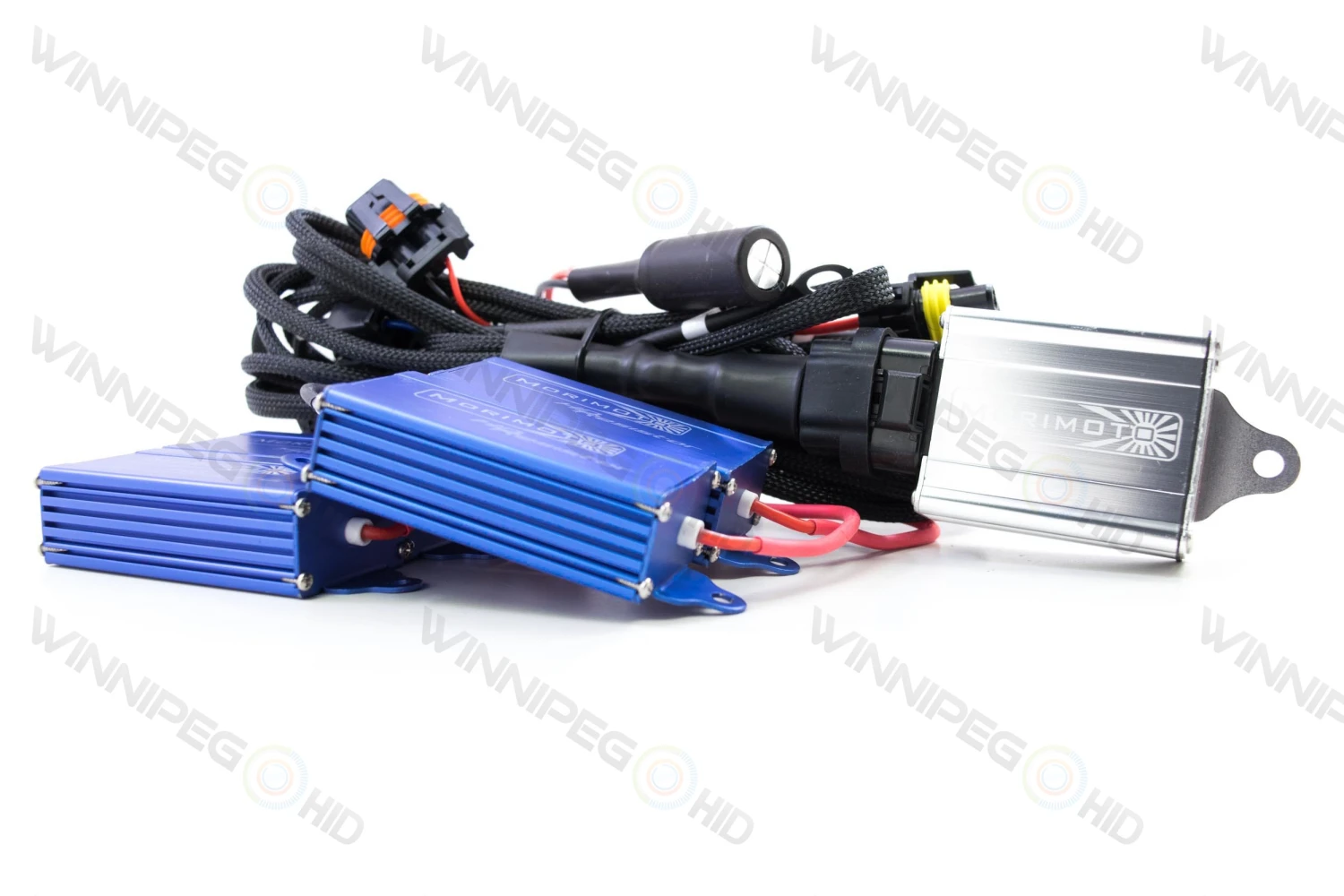

Mopar Spec: Morimoto 9007/9004 Bi-Xenon Harness

What’s in a Name: Though its name suggests it will only work on a Chrysler vehicle, this harness is becoming more and more commonly needed on a lot of modern vehicles. Don’t have a “lamp out” warning, but suffering from annoying pulsing current coming from your factory headlight circuit and causing your lights to flicker? this is your answer.

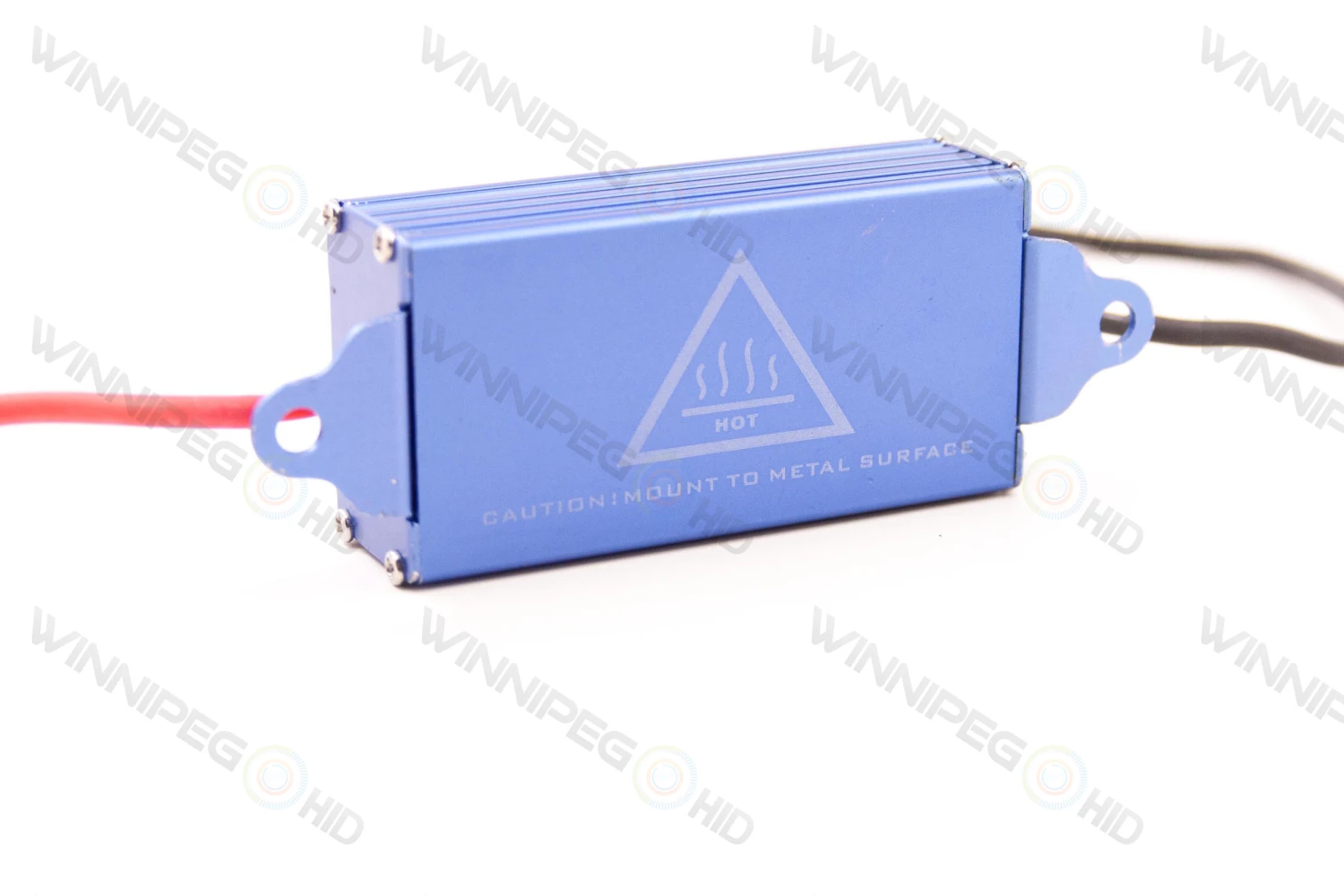

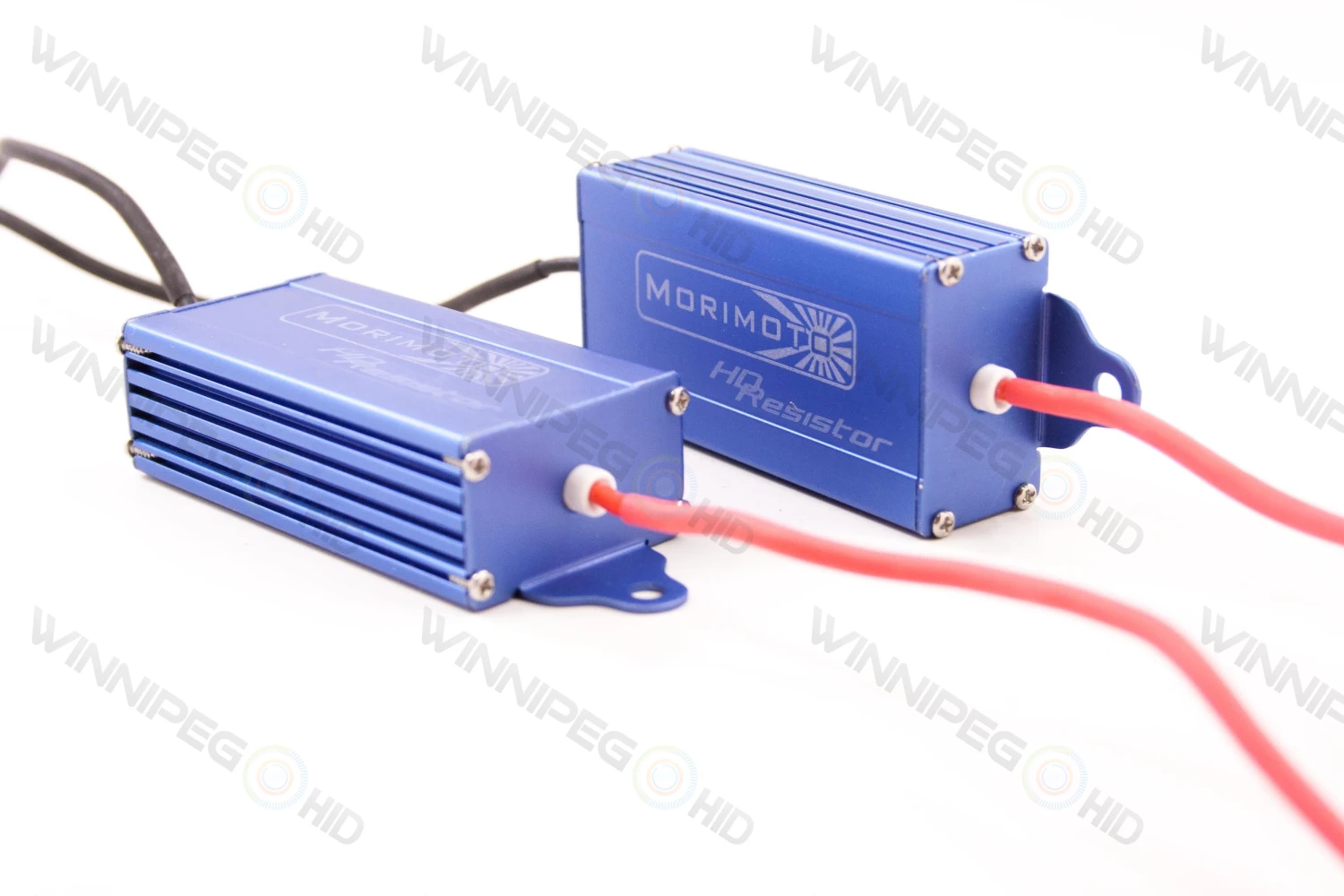

Can’t Resist: The 9007 Bi-xenon Mopar Spec harness utilizes two 50W load resistors with unique blue anodized heat-sinks to safely add that “missing” resistance back into the headlight circuit. There is also a 4700mF capacitor to help absorb any pulsing signals emitted from the stock output for uninterrupted relay function.

Under Control: Morimoto makes it easy with the MotoContro 9007 Bi-xenon relay harness. Designed to be
completely plug-n-play; it’s a seamless solution to keep your low and high beams under control with the original stalk inside the car. Works perfectly with Bi-xenon projector retrofits and Hi/Lo HID systems.

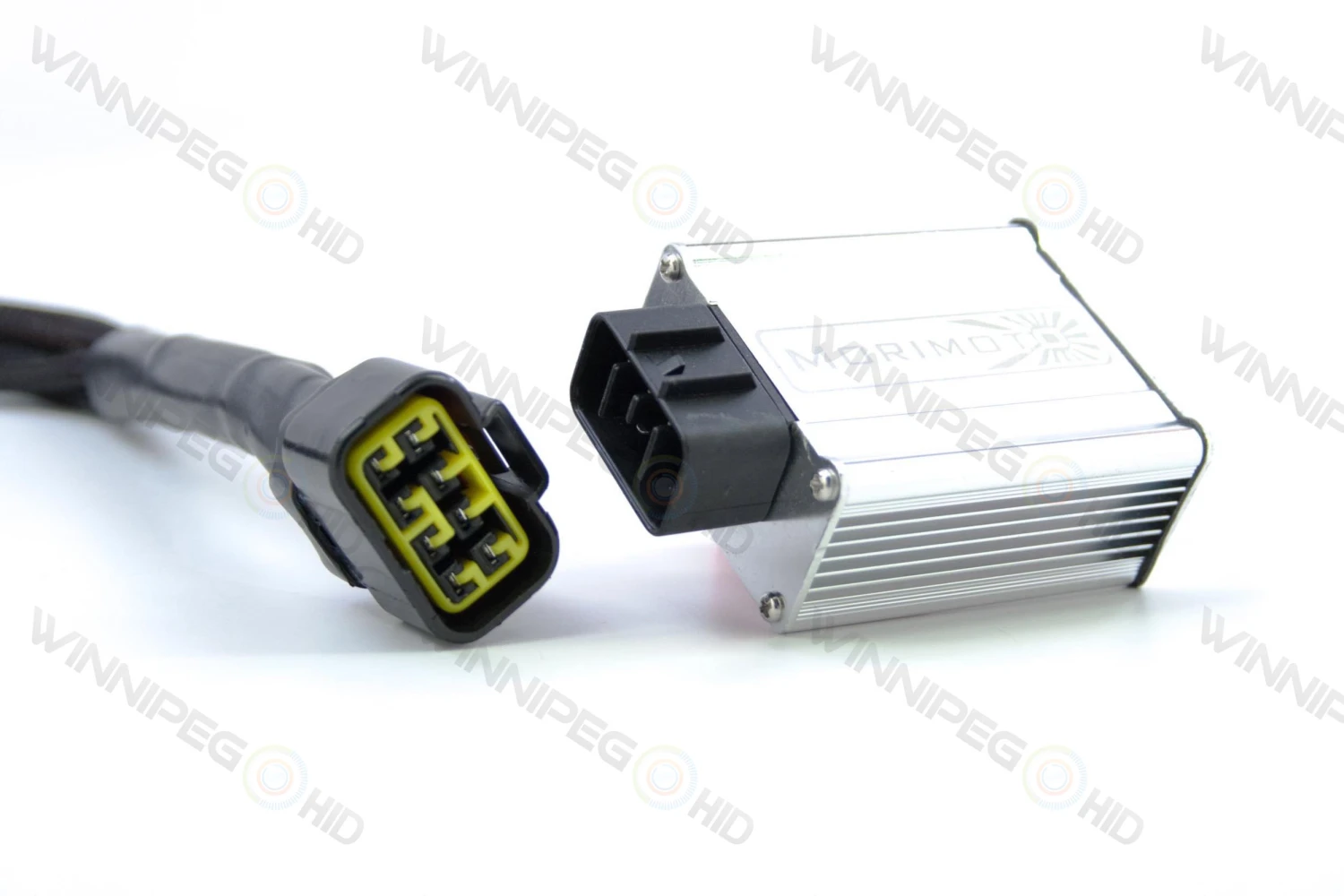

Advanced: The third generation MotoControl 8-Pin Relay has a tiny built-in capacitor that stores and releases it’s charge between mode changes. So even if there’s a short gap between the low and high beam signals from your car, your HID’s will run
smoothly. It’s sealed weather-pack connector is new for 2014 and is a major reliability upgrade compared to other bi-xenon harnesses.

Universal: This harness is designed to work with both positive and ground switched headlight circuits, making it universally compatible with all vehicles no matter new or old.

Plug n Play: The layout of the harness makes it easy to install. With just a few simple connections, even your mom could set this thing up! Wire lengths are long enough to be used in everything from compact cars to SUVs and it’s designed to be 100% plug and play (no cutting or splicing needed). Its connections are explained in this video.

OEM Grade: Aside from being ahead of the game from a technical standpoint, the HD relay is also a work of art. With it’s wiring protected by abrasion resistant Techflex mesh sleeving and it’s extruded aluminum relay shell that’s been anodized and laser engraved – the MotoControl Harness will look factory fresh under the hood!

COMPATIBILITY
Ballasts: 35W or 50W
Stock Bulb Size: 9007 or 9004 (Single Low/High)
HID Systems: Bi-Xenon Projectors and Bi-Xenon HID Bulbs
Halogen Bulbs: NOT Compatible
Plug-n-Play Bi-Xenon HID Bulbs: Require HID Female > 9006 Male Adapters

TECHNICAL SPECS

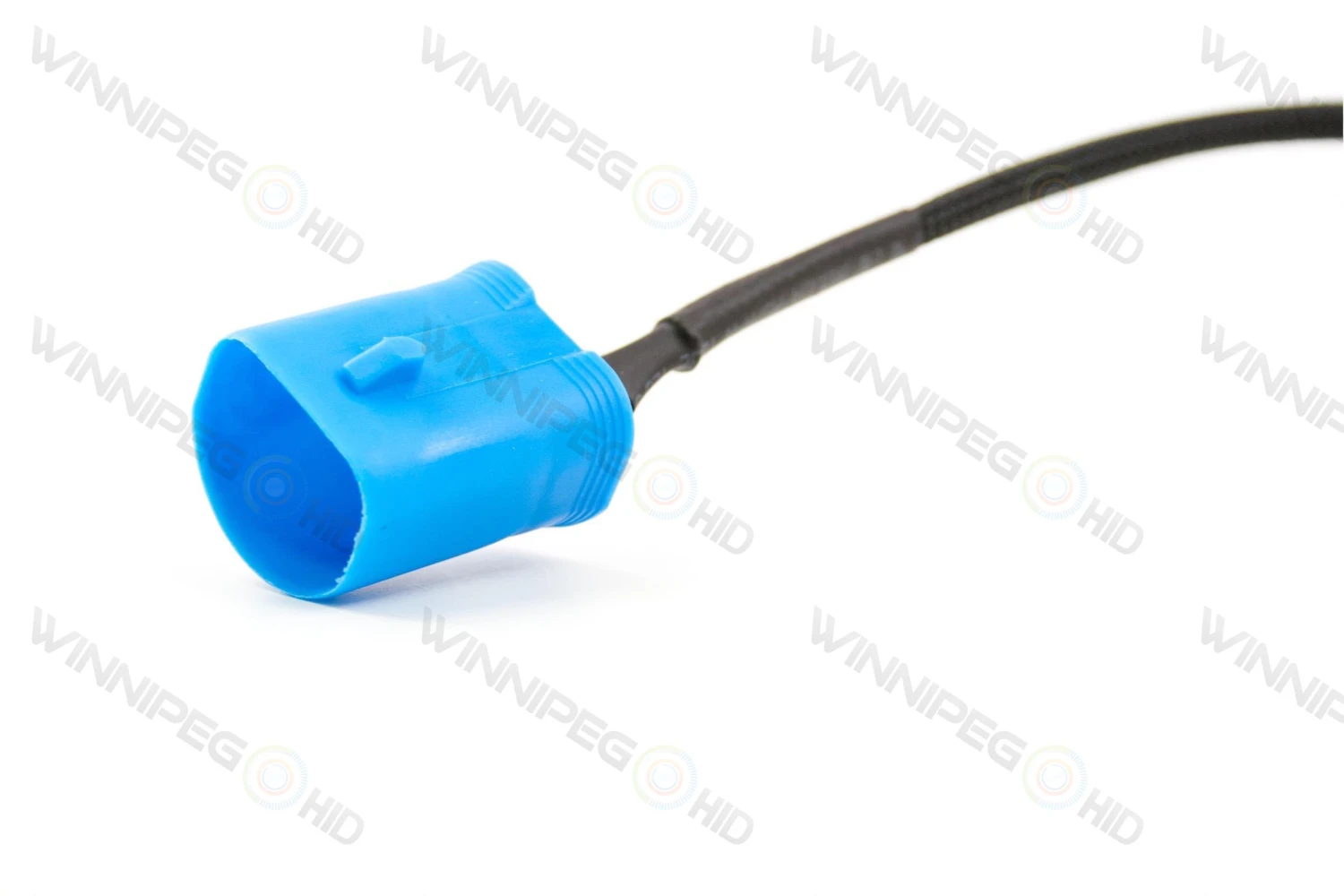

1x Input Trigger:9007 Male

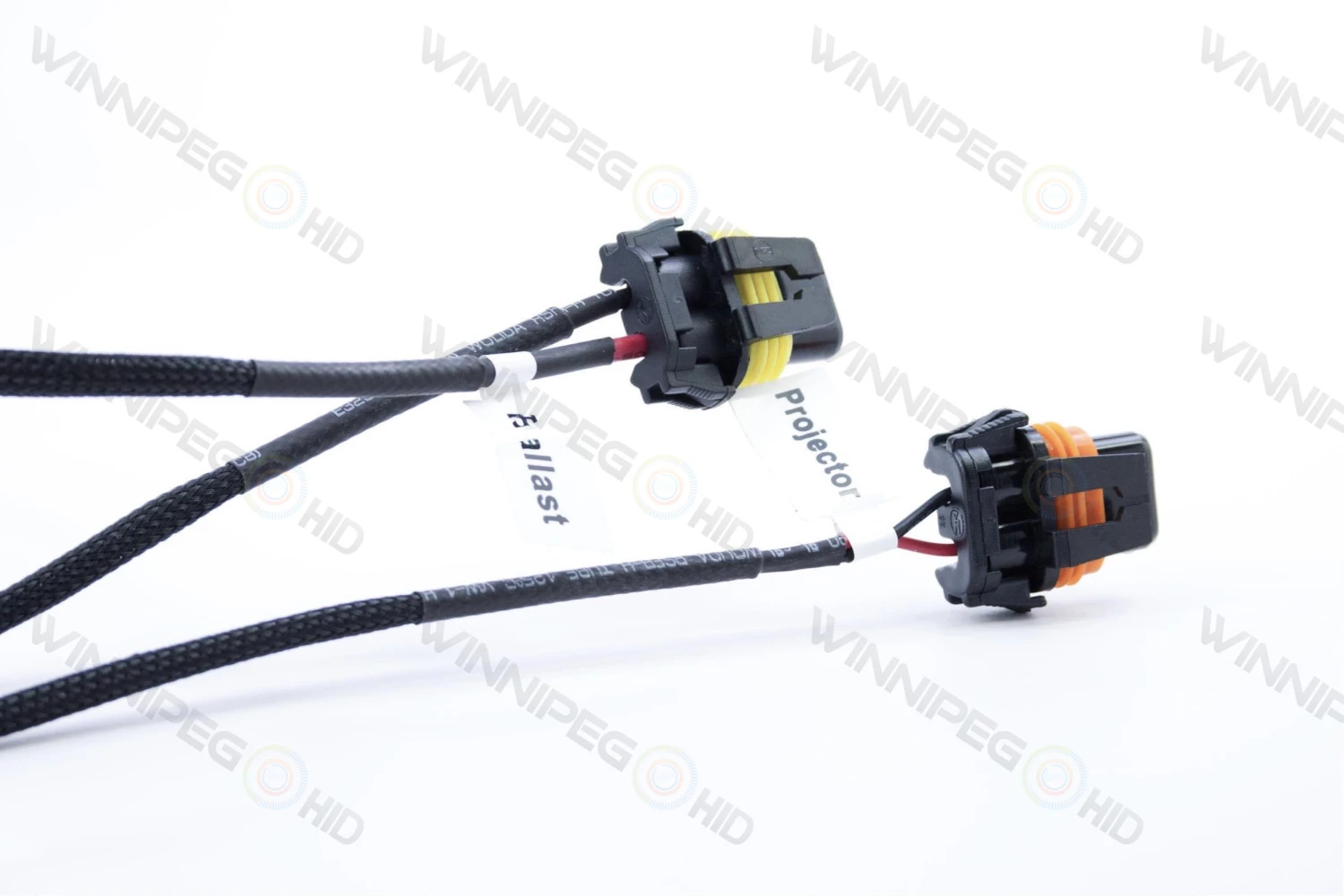

2x Ballast Outputs:9006 Female
2x High Beams:9006 Female
1x 12V Power:Nickel-Plated Ring-Type

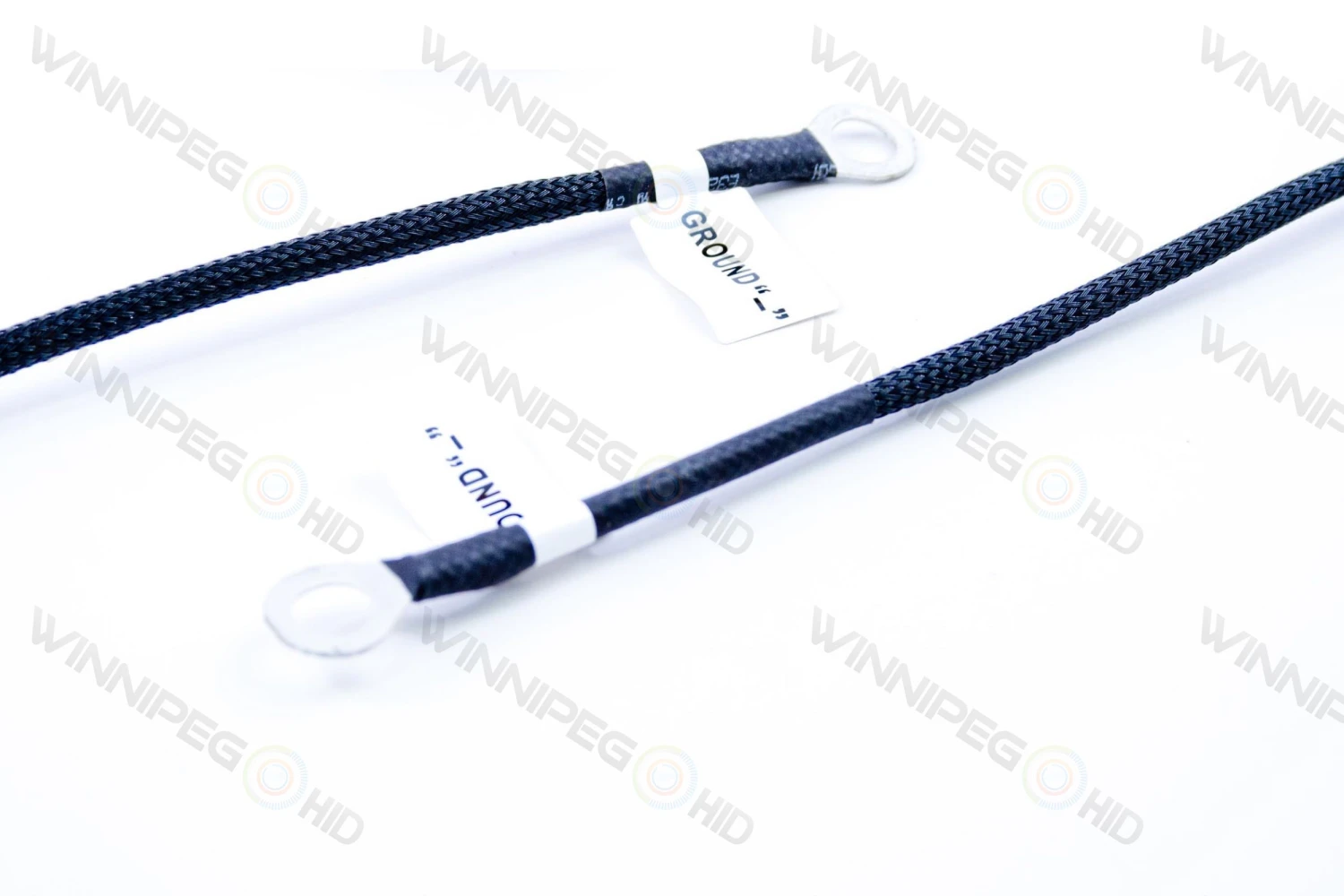

7x Grounds:Nickel-Plated Ring-Type
