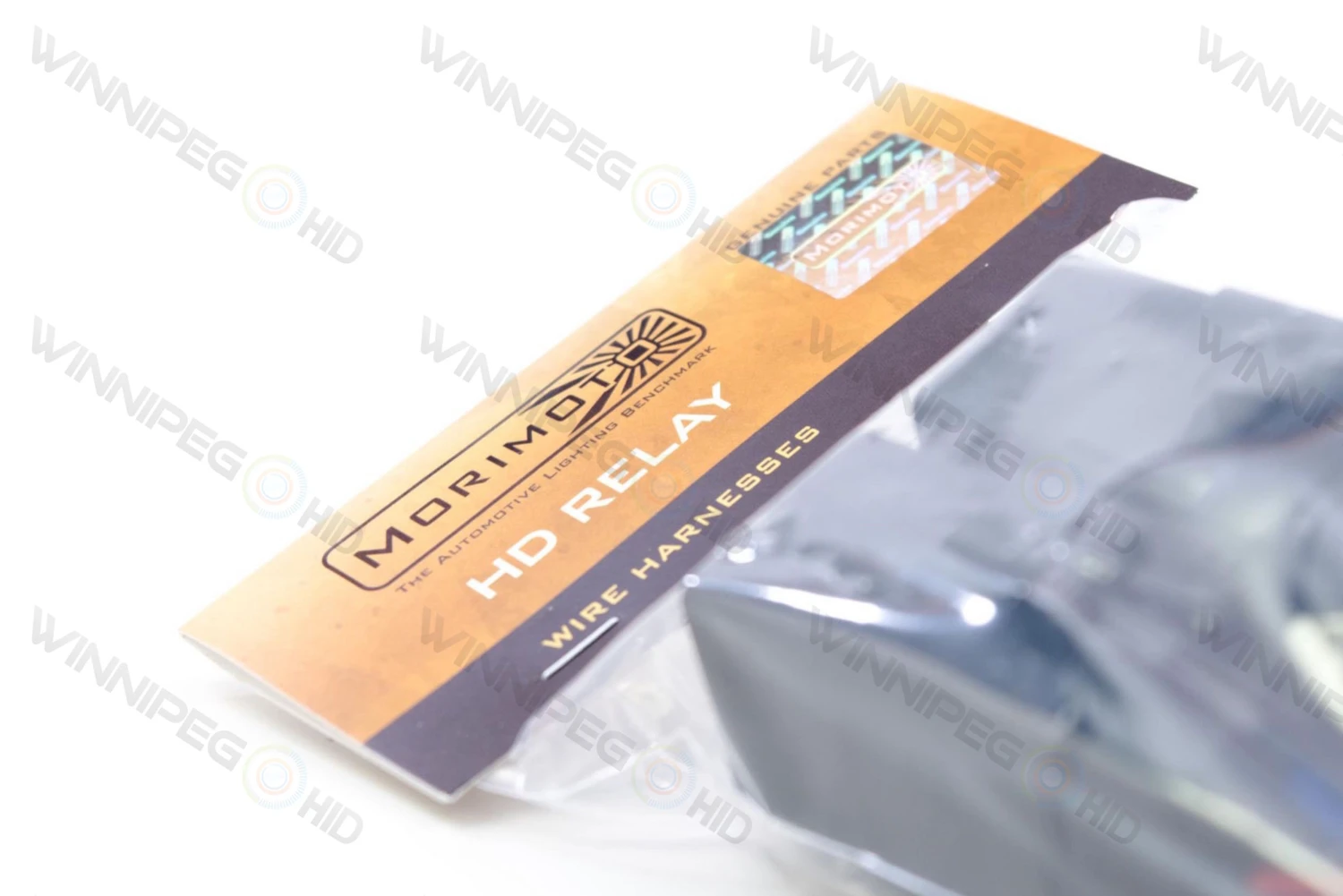

Morimoto Anti-Flicker Low Beam Relay Harness

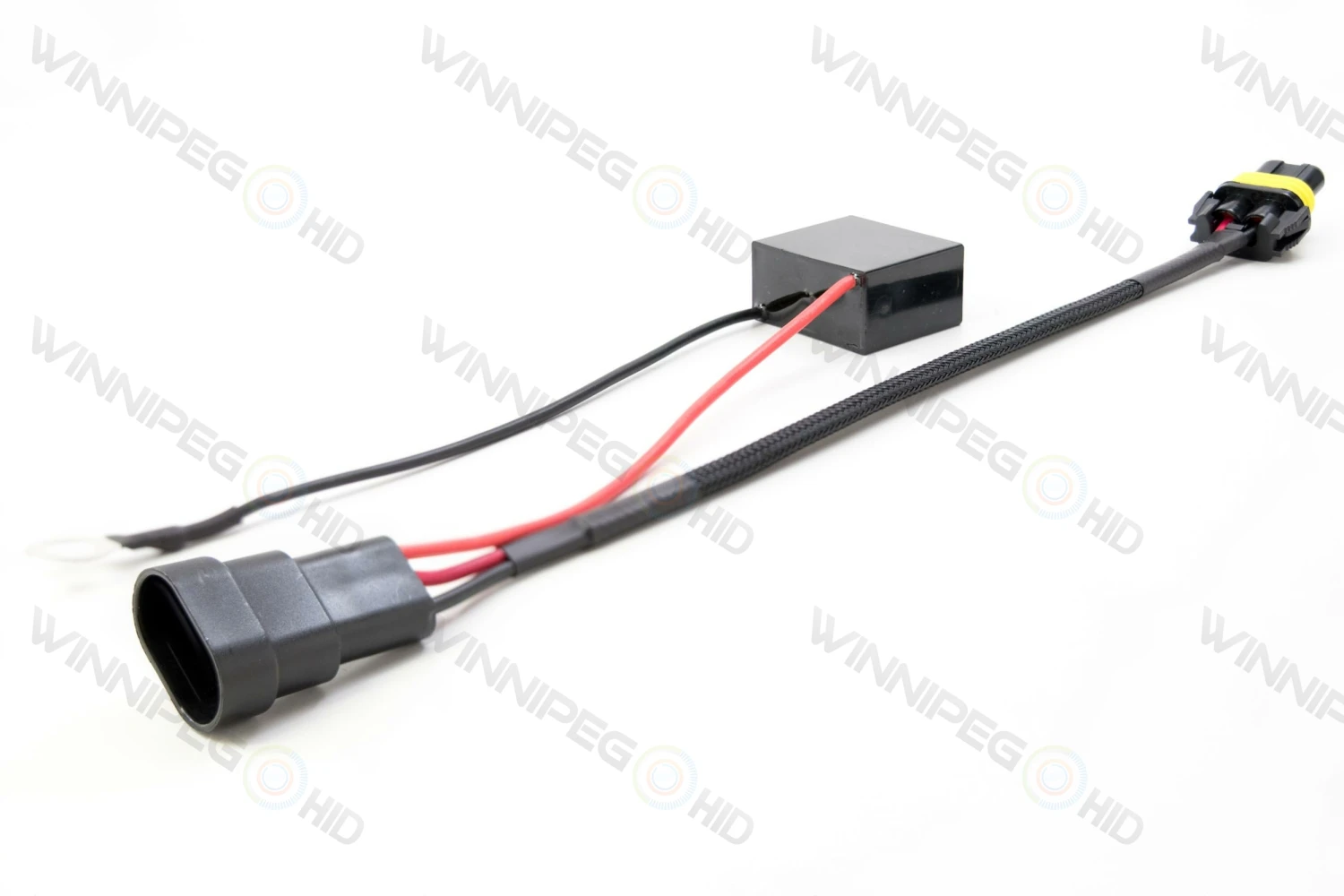

FLICKER-FREE: More and more vehicle’s are coming equipped with headlight circuits that run off a PWM system – which means they run the halogen bulbs at a constant intensity but with a pulsing current. While it’s no problem for the stock halogen bulb to maintain…. that kind of output from the car is definitely going to make your HID/LEDs flicker or act up. The 4700uF capacitor link that comes standard with this harness helps absorb any pulsing signals coming from your stock wiring to ensure uninterrupted relay function. Problem solved and flicker-free operation!

DON’T SKIMP: As one of the most important parts in any HID lighting upgrade; don’t skimp out when it comes to your wiring. It doesn’t matter how good your ballasts are. how good your bulbs are. If your harness is a piece of crap: when it gives out your headlights are gonezo. The Morimoto HD Relay harness is easily worth the premium price compared to cheaper alternatives.

PLUG N PLAY: The layout of the harness makes it easy to install. With just a few simple connections, even your mom could set this thing up! Wire lengths are long enough to be used in everything from compact cars to SUVs and it’s designed to be 100% plug and play (no cutting or splicing needed). It’s connections are explained in this video.

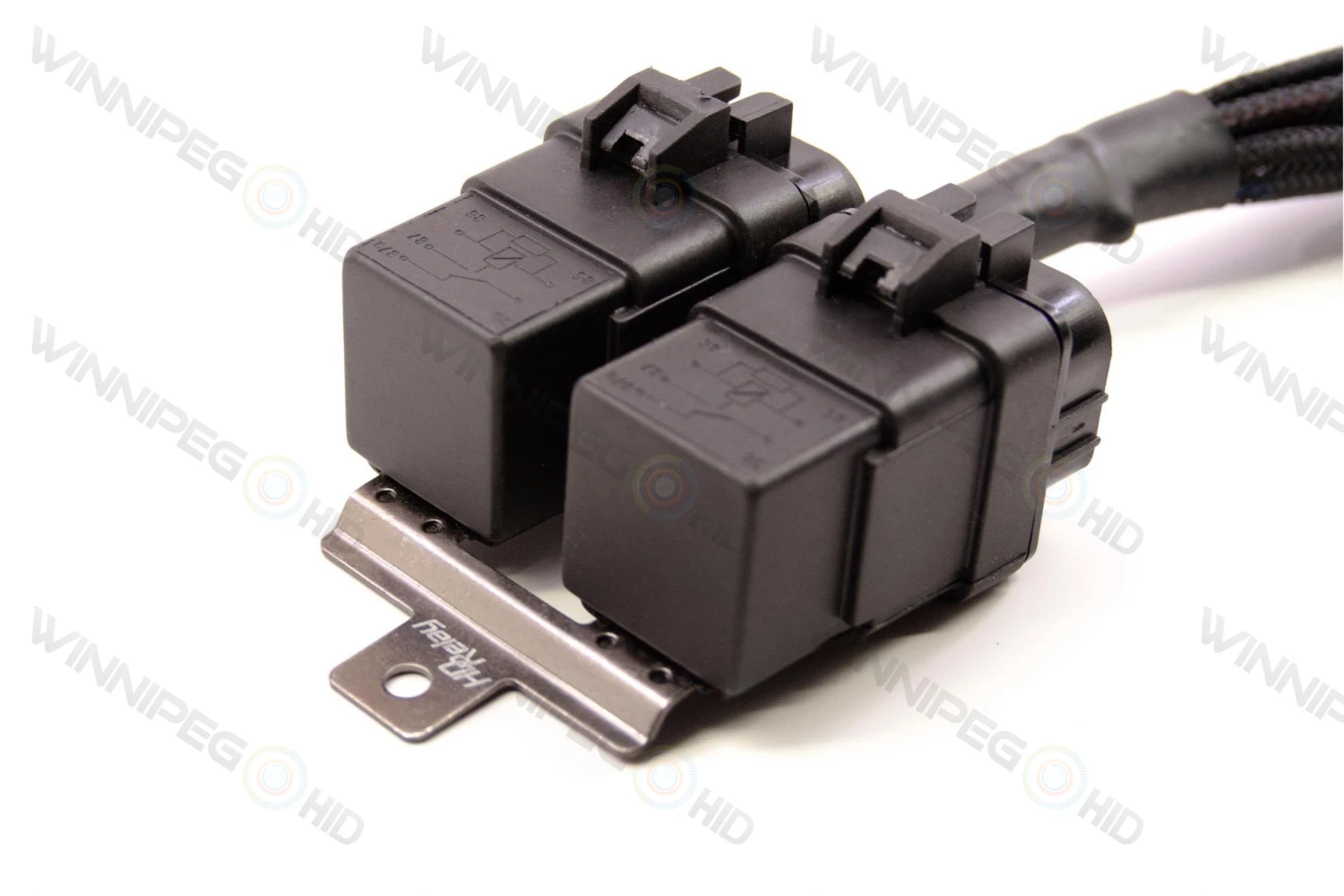

FAIL-SAFE: Unlike most generic harnesses out there that rely on a single low-quality relay to power both headlights, the Morimoto Harness utilizes one relay per side- so if one did happen fail, you wouldn’t be left completely in the dark. Each 40A relay is completely sealed against the elements using ribbed silicone upper and lower seals, and has an flywheel diode for back-EMF protection. Every other connection harness-wide is sealed with the proper silicone grommets. Live somewhere with weather that regularly sucks? No problem.

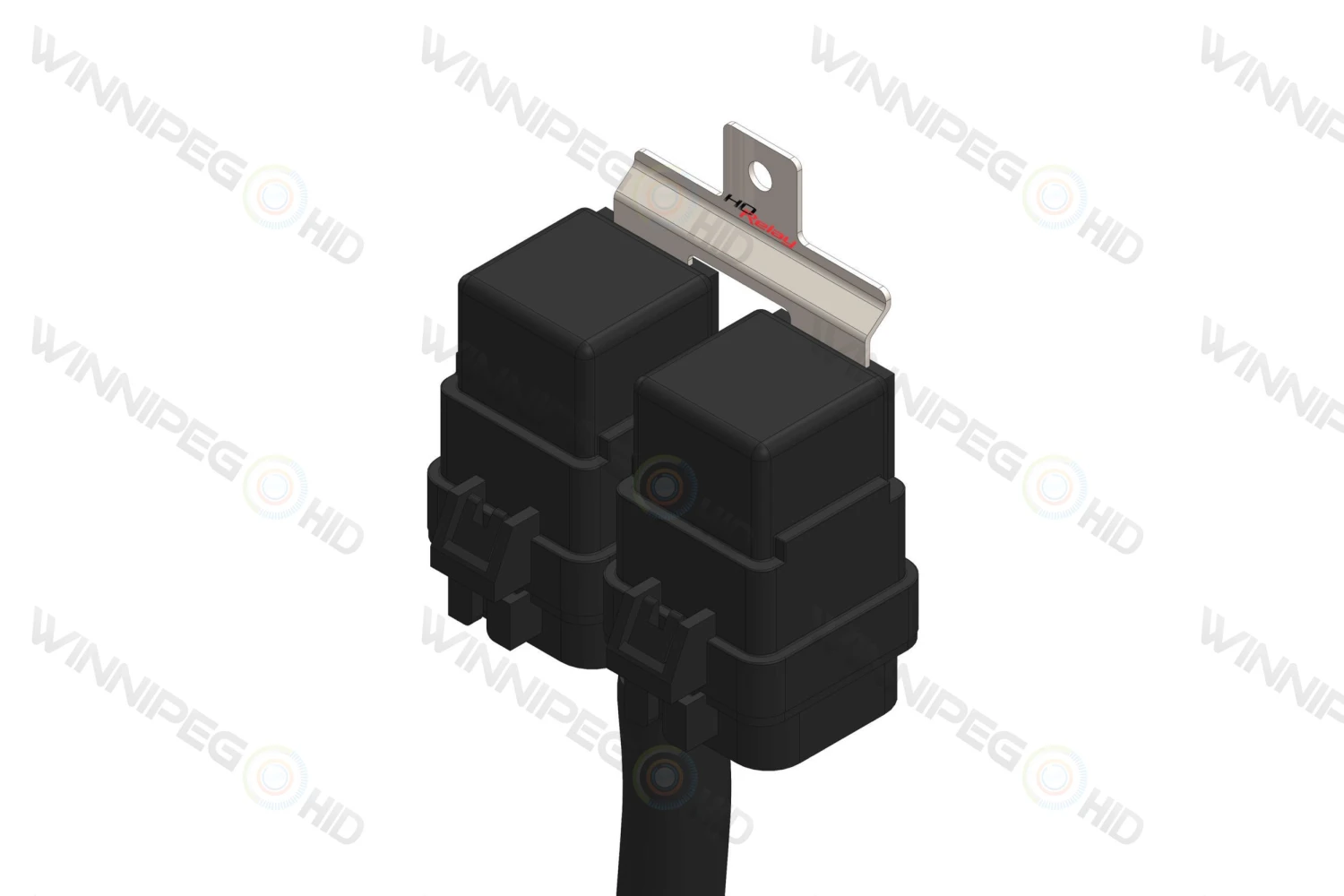

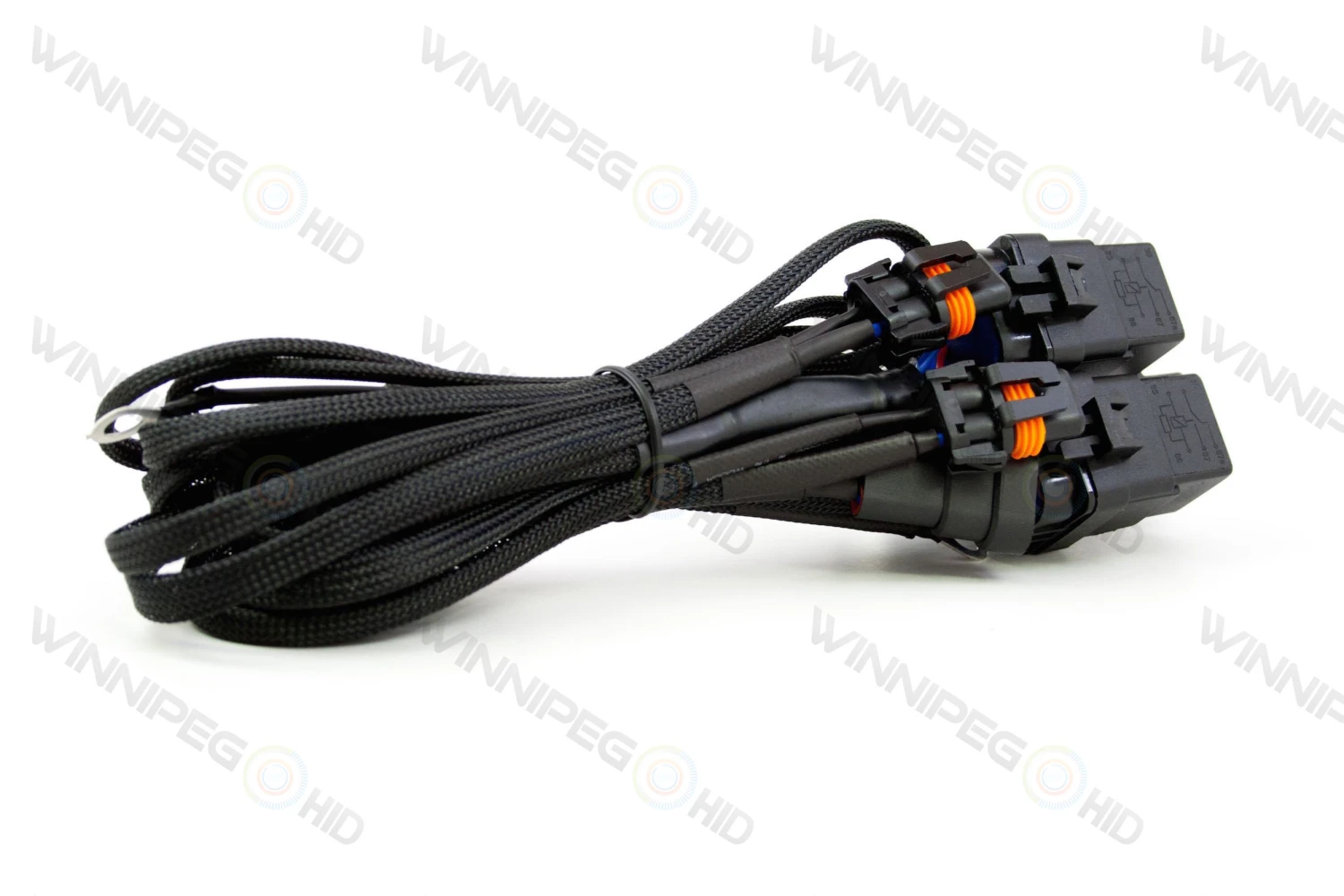

OEM GRADE: Aside from being ahead of the game from a technical standpoint, the Anti-Flicker HD Relay harness is also a work of art. With it’s wiring protected by abrasion resistant Techflex mesh sleeving and OEM-style relay cubes held together by a polished stainless steel mounting bracket – the HD relay will look factory fresh under the hood!

COMPATIBILITY
STOCK BULB SIZE: Match to your existing
HID SYSTEMS: Low Beams, High Beams, or Fog Lights
BI-XENON PROJECTORS?: You’ll need: High Beam Splitters
CANBUS SYSTEM?: You’ll need: these instead

TECH SPECS
INPUT TRIGGER: 1x 9006 Male
INPUT ADAPTER: Size-Dependent
BALLAST OUTPUTS: 2x 9006 Female
12V POWER: 1x Nickel-Plated Ring-Type

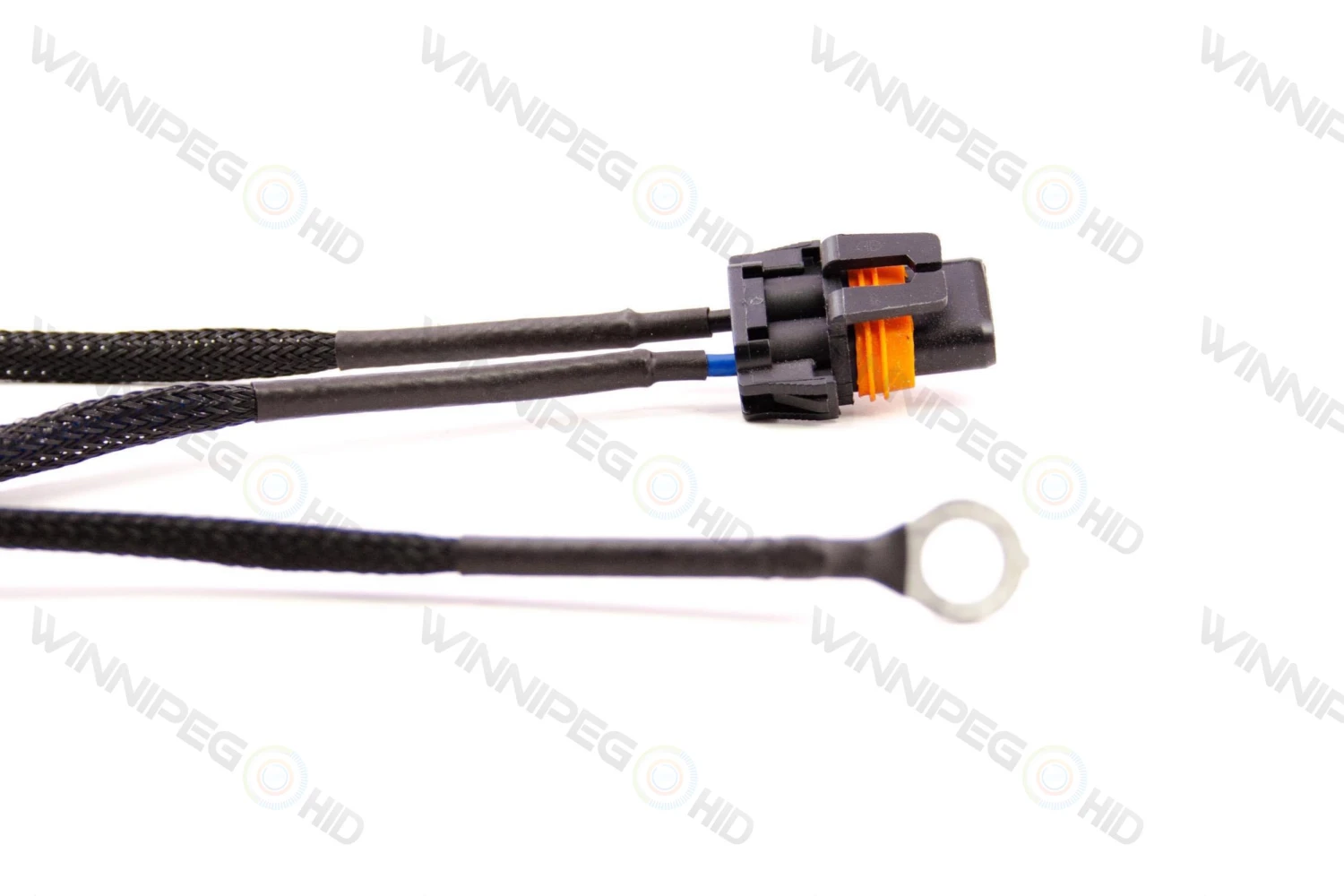

GROUND: 2x Nickel-Plated Ring-Type

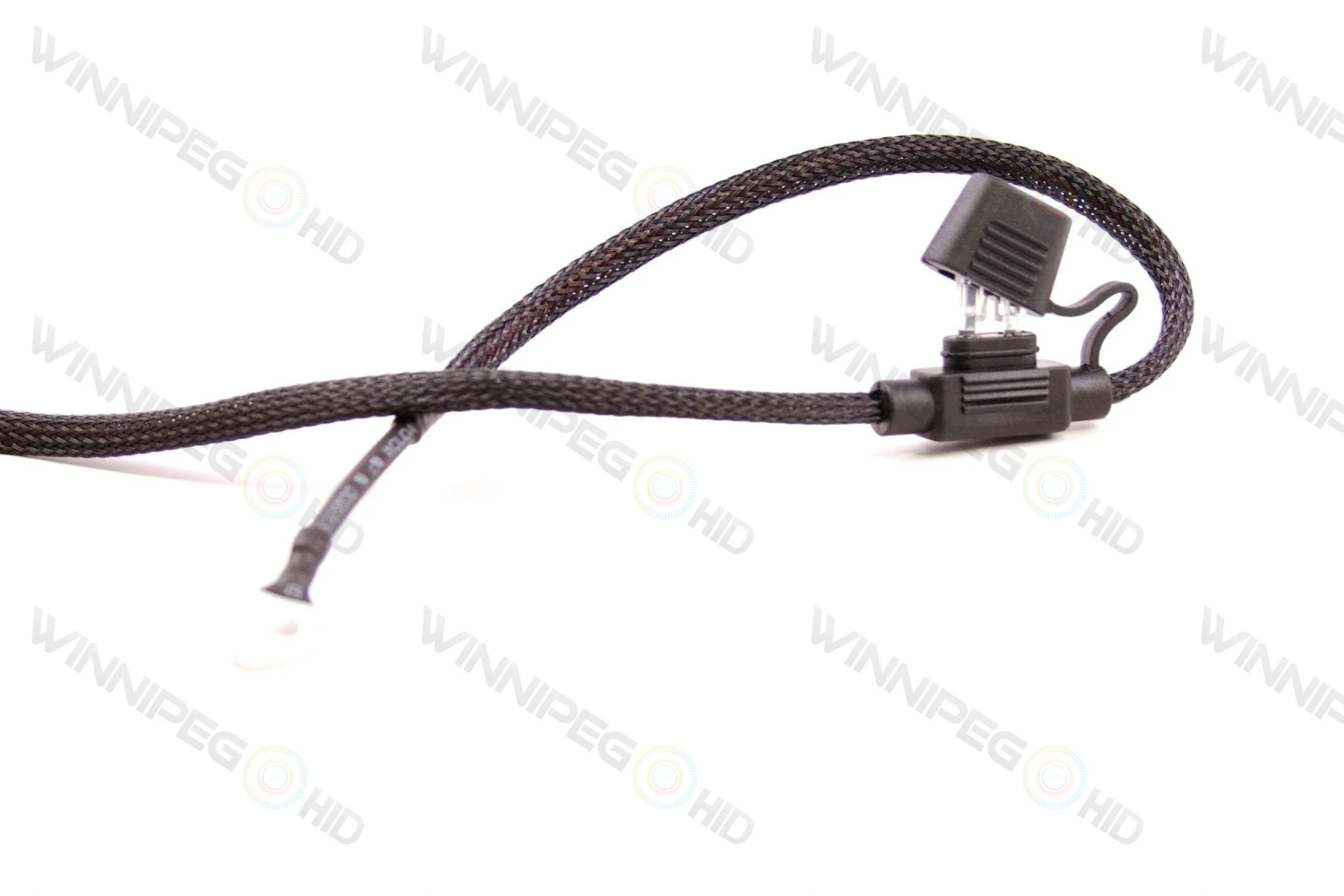

FUSE: Inline 25A
