Morimoto HD Relay Harness

Original price was: $59.00.Current price is: $41.30.

Morimoto HD relay harnesses are 100% water proof, plug-n-play relay harnesses. Used to deliver constant voltage to your HID ballasts directly from the vehicles battery. A must have for any HID conversion system on a vehicle and can be used for a variety of other lighting and accessory applications as well.

WHAT’S INCLUDED

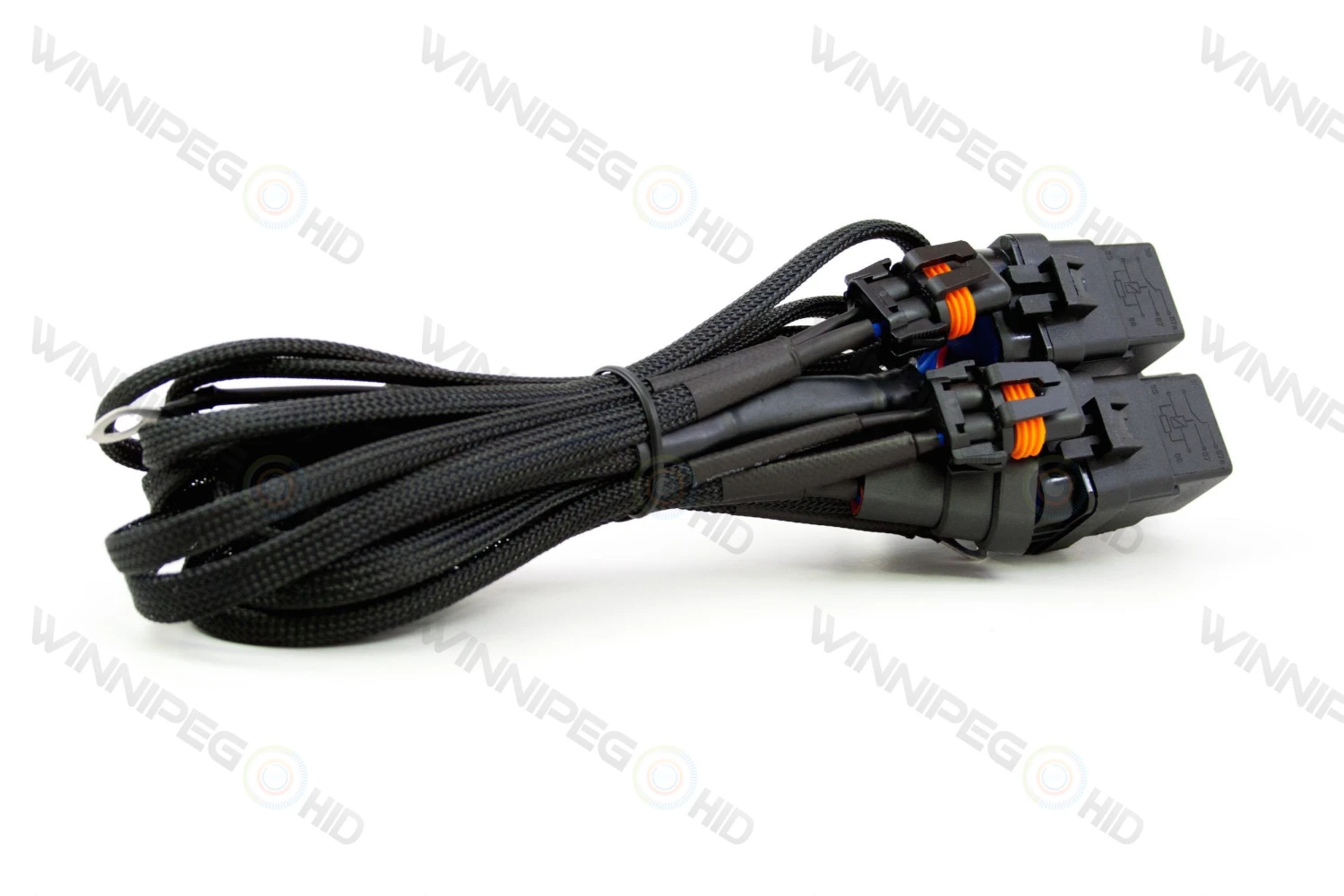

Relay Harness: Morimoto 9006 HD (1x)
Relays: Weather Pack 40A Cubes (2x)
Warranty: 2 Years
Please Note: One Harness Controls Both Headlights

Secure Shopping with Safe Payments

Peace of Mind with Every Purchase

Nature-friendly materials, 100%.

No Compromise on Quality

Don’t Skimp: As one of the most important parts in any HID lighting upgrade; don’t skimp out when it comes to your wiring. It doesn’t matter how good your ballasts are. how good your bulbs are. If your harness is a piece of crap: when it gives out your headlights are gonezo. The Morimoto HD Relay harness is easily worth the premium price compared to cheaper alternatives.

Plug n Play: The layout of the harness makes it easy to install. With just a few simple connections, even your mom could set this thing up! Wire lengths are long enough to be used in everything from compact cars to SUVs and it’s designed to be 100% plug and play (no cutting or splicing needed). Its connections are explained in this video.

Compatible: The HD relay can be used for low beams, high beams, or fog lights on most vehicles. The harness uses industry-standard outputs for compatibility with 99% of ballasts out there, and all of the ones we offer. Note, if your vehicle has a can-bus system or a finicky pulsed headlight circuit – check out our Standalone Canbus or the Mopar Spec harnesses.

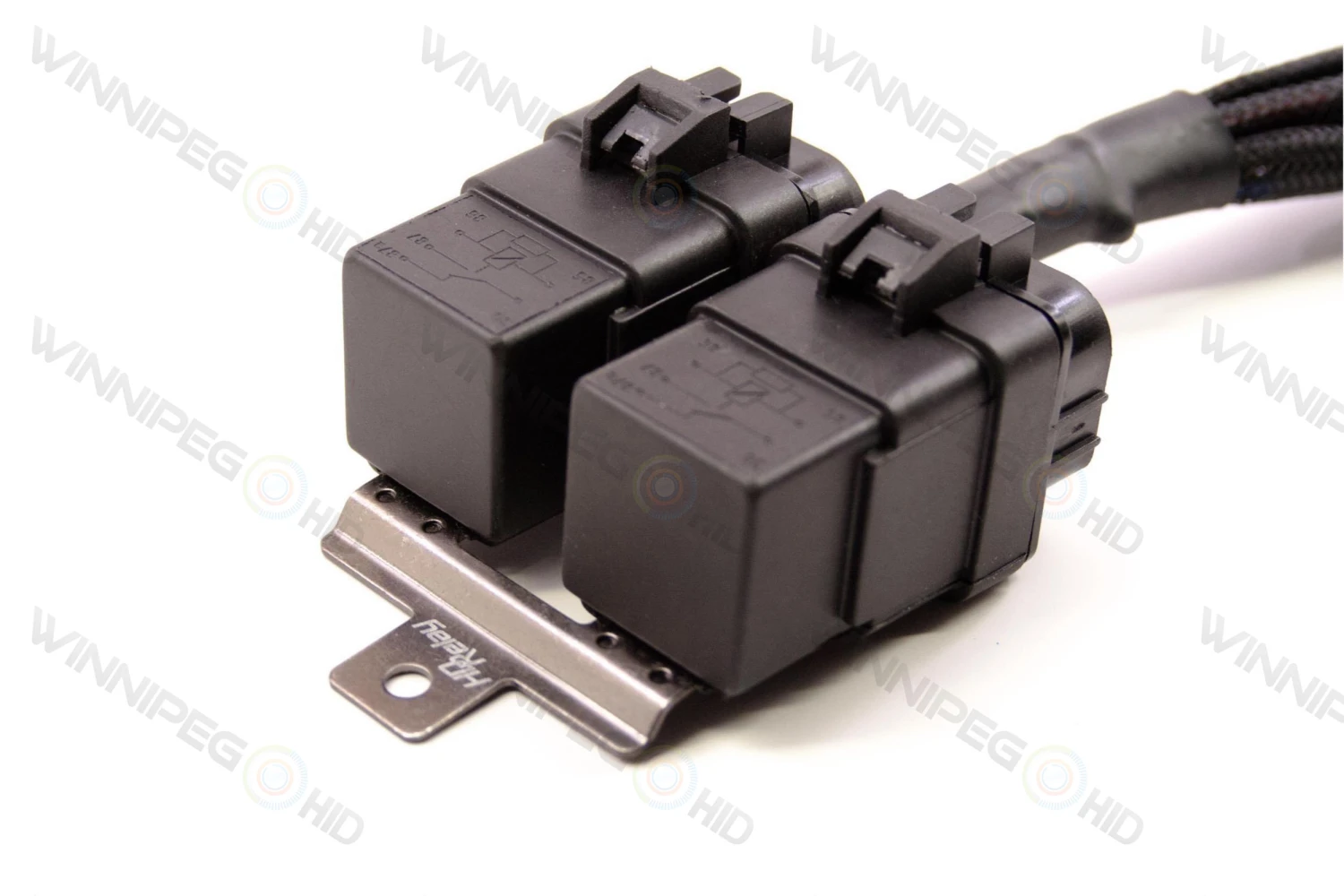

Fail-Safe: Unlike most generic harnesses out there that rely on a single low-quality relay to power both headlights, the Morimoto Harness utilizes one relay per side- so if one did happen fail, you wouldn’t be left completely in the dark. Each 40A relay is completely sealed against the elements using ribbed silicone upper and lower seals, and has an flywheel diode for back-EMF protection. Every other connection harness-wide is sealed with the proper silicone grommets. Live somewhere with weather that regularly sucks? No problem.

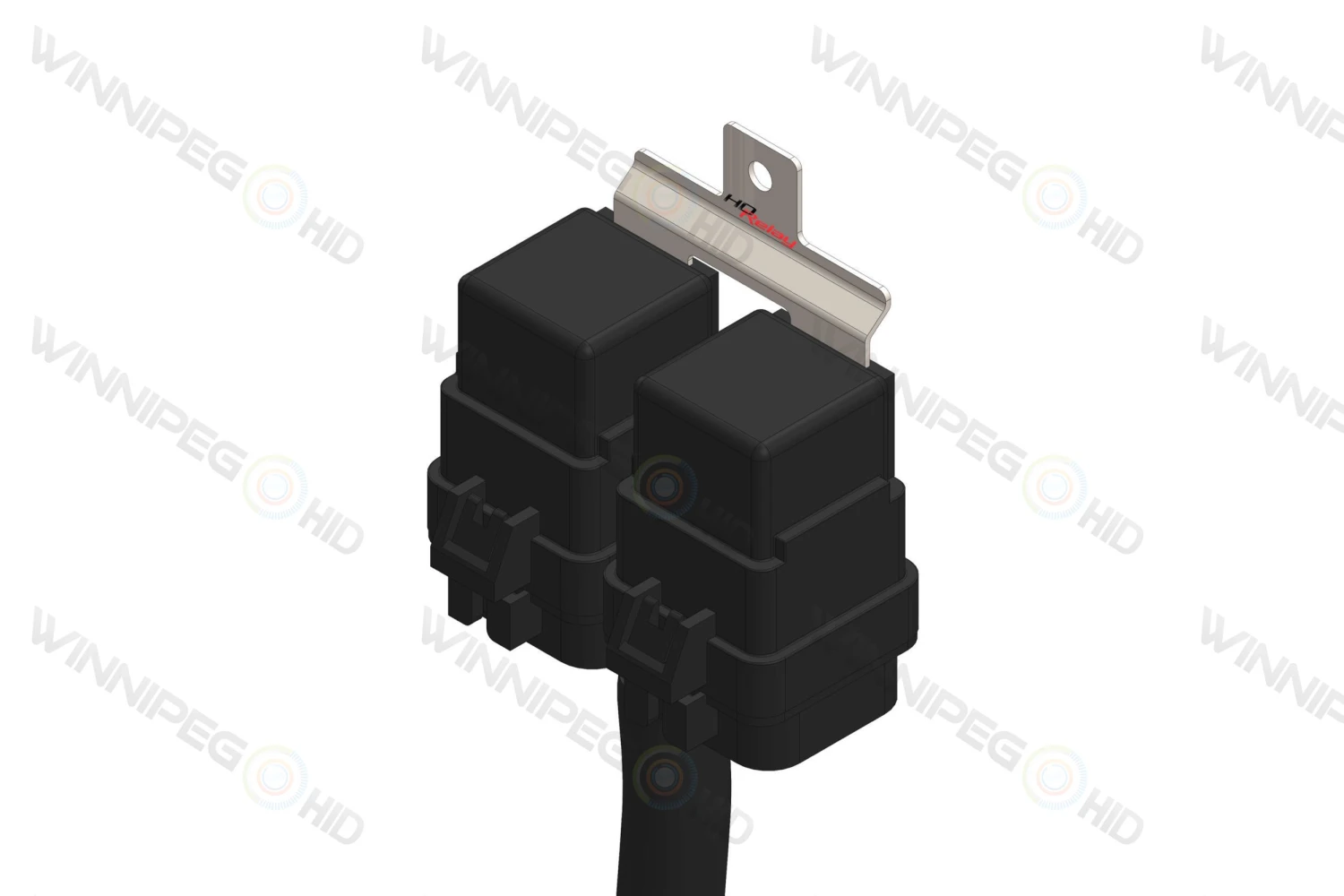

OEM Grade: Aside from being ahead of the game from a technical standpoint, the HD relay is also a work of art. With it’s wiring protected by abrasion resistant Techflex mesh sleeving and OEM-style relay cubes held together by a laser engraved mounting bracket that’s been artfully anodized with a titanium gray finish – the HD relay will look factory fresh under the hood!

COMPATIBILITY
Ballasts: 35W or 50W
Bulb Size: Universal (Use included adapter harnesses included with bulbs)
HID Systems: Low Beams, High Beams and Fog Lights
Bi-Xenon Capable: With High Beam Splitters
Pulsing Signal (DRL)?: Add Capacitor Link to Input Trigger
Canbus System: Use CANBUS Standalone Adapters Instead

TECHNICAL SPECS

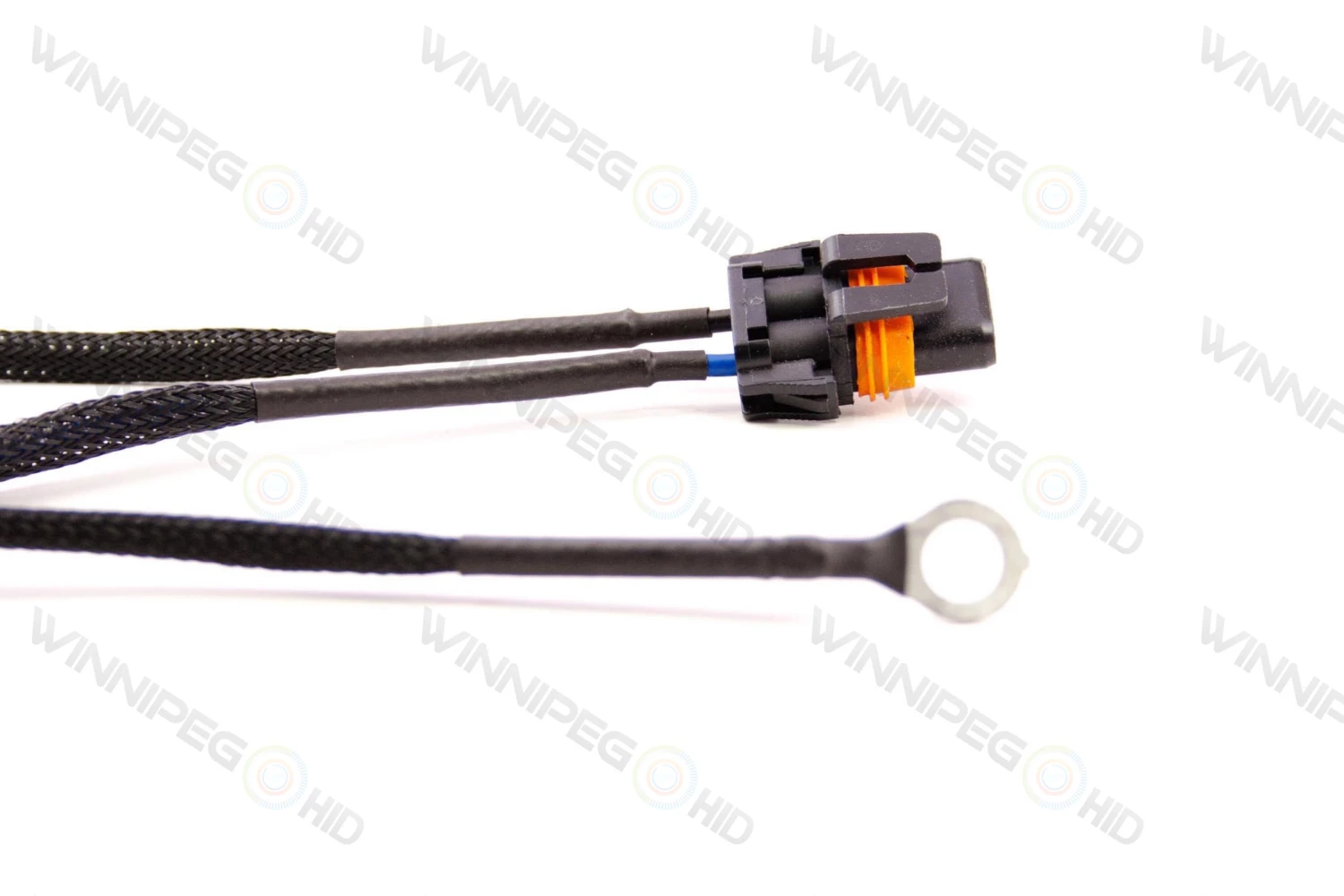

1x Input Trigger: 9006 Male
2x Ballast Outputs: 9006 Female
1x 12V Power: Nickel-Plated Ring-Type
2x Grounds: Nickel-Plated Ring-Type
